Amp Te Connectivity 2311770-1 - Ampl Rec, Hd22, R/a, 44P, Threaded Rohs Compliant: Yes - 2311770-1
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Newark | 96AC6044 | 2400 | 1296 | 2400 | 100 @ $10.08 |
 Newark | 57AC4923 | 1 | 178 | 1 | 1 @ $12.12, 10 @ $10.72, 25 @ $10.50, 50 @ $10.28, 100 @ $10.08 |
 Arrow | 2311770-1 | 1 | 5484 | 1 | 1 @ $10.02, 10 @ $9.74, 100 @ $7.80, 1000 @ $6.12, 10000 @ $6.12 |
| Mouser | 571-2311770-1 | 1 | 3005 | 1 | 1 @ $10.25, 10 @ $9.81, 100 @ $8.24, 1000 @ $6.10, 10000 @ $6.10 |
| Waldom | TE CONNECTIVITY 2311770-1 | 1 | 1 | ||
| us.rs-online.com | 73773615 | 1 | 1 | 1 @ $12.61, 10 @ $11.22, 50 @ $10.22, 100 @ $9.98 | |
 Digi-Key | 10466542 | 1 | 2253 | 1 | 1 @ $12.30, 10 @ $10.69 |
 Zoro | G205915809 | 1 | 1 | 1 @ $108.90 | |
| Waldom | TE CONNECTIVITY AMP BRAND 2311770-1 | 10 | 1805 | 1 | 10 @ $6.65, 40 @ $6.52, 80 @ $6.39, 200 @ $6.28 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
2311770-1, Conn High Density D-Sub F 44 POS 1.14mm Solder RA Thru-Hole 44 Terminal 1 Port (5 Items)
Brand: TE Connectivity
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | 2311770-1 |
| Part number | 2311770-1 |
| Items per pack | 5 |
| Label | TE Connectivity |
| Manufacturer | TE Connectivity |
Analytics
| Case Qty | 5 units |
|---|---|
| Atom Count | 1 |

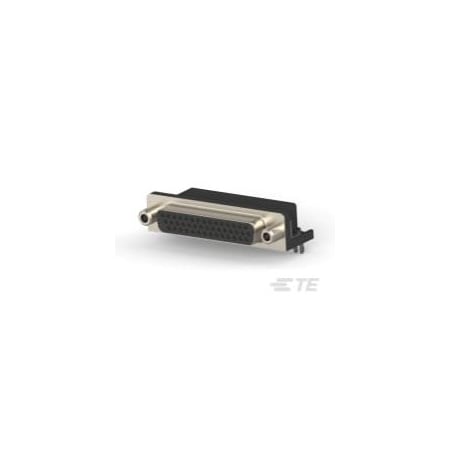

2311770-1, Conn High Density D-Sub F 44 POS 1.14mm Solder RA Thru-Hole 44 Terminal 1 Port (5 Items)
Brand: TE Connectivity
EU RoHS: Compliant with Exemption ECCN (US): EAR99 Part Status: Active HTS: 8536.69.40.30 Type: High Density D-Sub Gender: F Number of Contacts: 44 Number of Terminals: 44 Number of Ports: 1 Number of Rows: 3 Termination Method: Solder Terminal Pitch (mm): 1.14 Body Orientation: Right Angle Contact Gender: F Maximum Current Rating (A): 3/Contact Maximum Voltage Rating: 250VAC Insulation Resistance (MOhm): 1000 Maximum Contact Resistance (mOhm): 30 Minimum Operating Temperature (°C): -55 Maximum Operating Temperature (°C): 85 Mating Cycle (Cycles): 100 Shell Material: Steel Shell Plating: Nickel Shell Size: 3 Less Contact: No Product Weight (g): 17 Product Length (mm): 53.04 Product Depth (mm): 21.8 Product Height (mm): 12.55 Housing Color: Black Contact Plating Thickness: (0.76/1.27)mm Contact Plating: Gold Over Nickel Mounting: Through Hole Contact Material: Phosphor Bronze
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | 2311770-1 |
| Part number | 2311770-1 |
| Items per pack | 5 |
| Label | TE Connectivity |
| Manufacturer | TE Connectivity |
Analytics
| Case Qty | 5 units |
|---|---|
| Atom Count | 1 |
