TE Connectivity . 3-2213818-9

TE Connectivity . 3-2213818-9

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTE Connectivity
moq, multiple, tierMinQty11050
MPN, Keyword, ModelNumber, Model_number, PartNumber, Part_number3-2213818-9
qtyInStock0
SKU3073222
tierMinQty2100
tierMinQty3250
tierMinQty4500
tierMinQty51000
tierPrice11.9561
tierPrice21.4704
tierPrice31.3916
tierPrice41.326
tierPrice51.2734
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
AsinB096T3HYVV
ClassificationId5739464011
DisplayNamePushbutton Switches
Height, Width150 75
Identifier7422846150146
IdentifierTypeEAN
ItemClassificationBASE_PRODUCT

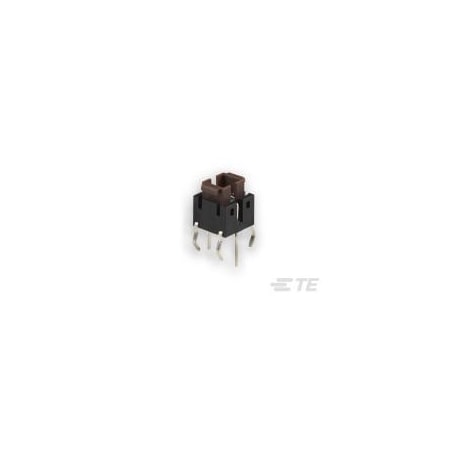

ItemName, Item_nameSwitch Tactile Off (ON) SPST Rectangular Button PC Pins 0.05A 12VDC 200000Cycles 2.55N Thru-Hole
Item_type_keywordelectronic-component-pushbutton-switches
Linkhttps://m.media-amazon.com/images/I/0168lbZ4kqS._SL75_.jpg https://m.media-amazon.com/images/I/0168lbZ4kqS.jpg
Number_of_items75
ProductTypeELECTRONIC_SWITCH
Product_descriptionEU RoHS: Compliant ECCN (US): EAR99 Part Status: Active Pole Throw Configuration: SPST Actuator Style: Rectangular Button Switching Function: Momentary Switch Configuration: OFF (ON) Maximum Current Rating (A): 0.05@12VDC Dielectric Strength: 250VAC Minimum Insulation Resistance (MOhm): 100 Maximum Contact Resistance (mOhm): 100 Mechanical Life (Cycles): 200000 Operating Force (N): 2.55 Actuator Color: Brown Actuator Length (mm): 2.2 Number of Rows: 2 Mounting: Through Hole Termination Style: PC Pins Number of Terminals: 4 Terminal Length (mm): 3.5 Terminal Pitch (mm): 4.5 Body Orientation: Straight Minimum Operating Temperature (°C): -25 Maximum Operating Temperature (°C): 70 Body Length (mm): 6.1 Body Depth (mm): 6.1 Body Height (mm): 4.8 Product Length (mm): 6.1 Product Depth (mm): 7.8 Product Height (mm): 7 Contact Material: Stainless Steel Contact Plating: Silver
Product_site_launch_date2021-06-07T19:00:47.505Z
Typeean
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Future Electronics3073222105010501050 @ $1.96, 100 @ $1.47, 250 @ $1.39, 500 @ $1.33, 1000 @ $1.27
Newark75AC81757536497550 @ $1.68, 100 @ $1.51, 500 @ $1.32
ZoroG60100986775751 @ $1.79
WaldomTE CONNECTIVITY AMP BRAND 3-2213818-9606799160 @ $0.93, 300 @ $0.91, 600 @ $0.89, 1050 @ $0.86

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Switch Tactile Off (ON) SPST Rectangular Button PC Pins 0.05A 12VDC 200000Cycles 2.55N Thru-Hole
Brand: TE Connectivity
EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active Pole Throw Configuration: SPST Actuator Style: Rectangular Button Switching Function: Momentary Switch Configuration: OFF (ON) Maximum Current Rating (A): 0.05@12VDC Dielectric Strength: 250VAC Minimum Insulation Resistance (MOhm): 100 Maximum Contact Resistance (mOhm): 100 Mechanical Life (Cycles): 200000 Operating Force (N): 2.55 Actuator Color: Brown Actuator Length (mm): 2.2 Number of Rows: 2 Mounting: Through Hole Termination Style: PC Pins Number of Terminals: 4 Terminal Length (mm): 3.5 Terminal Pitch (mm): 4.5 Body Orientation: Straight Minimum Operating Temperature (°C): -25 Maximum Operating Temperature (°C): 70 Body Length (mm): 6.1 Body Depth (mm): 6.1 Body Height (mm): 4.8 Product Length (mm): 6.1 Product Depth (mm): 7.8 Product Height (mm): 7 Contact Material: Stainless Steel Contact Plating: Silver
Analytics
Case Qty75 units
Atom Count6
