Nora . NHFM8-9100/EL

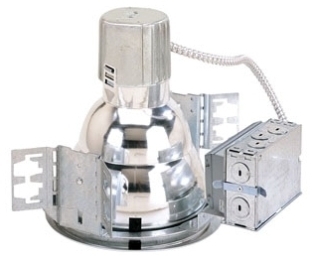

nhfm8-9100/el, nora, 8", hid, ceramic, metal, halide, architectural, housing, NHFM8 Series8" HID Ceramic Metal Halide Architectural Housing DESCRIPTION:Nora Lighting s family of HID Architectural Frame-In fixtures is ideal for suspended ceiling or T-Bar installations requiring high quality architectural grade reflectors in high ceilings for standard or ceramic metal halide light sources. Reflectors have a wide variety of optional features including specular finish, baffle glare reduction, cross baffle louvers, wall wash, and decorative glass accents. Photometrics and .ies files are available where precise calculations and fixture layout planning is necessary.Ballast: Electronic (/EL) Universal Input (120V/277V)Socket: Steel shell porcelain jacketed 4KV pulse rated socket mounted inside die cast heat dissipating aluminum housing.Lamp Type: Ceramic PAR or ED Metal Halide for electronic ballast.Minimum Clearances: Commercial frame-in requires minimum clearances of 3" from thermal insulation and 1/2" from adjacent building components.Ceiling Thickness: Accepts 5/8" maximum ceiling thickness.Lamp Adjustment: Reflectors have three adjustment slots for optimal light distribution.Bar Hanger Brackets: Universal brackets accept C-Channel or flat bar hangers (ordered separately), or simple rigid 1/2" steel conduit for tie-down to ceiling grids. Junction Box: Prewired 29 cu. in. with seven 1/2" knockouts, 4 pry-outs and snap on covers. Ground wire connected on bottom of box.Quartz Restrike: DC Bayonet Base Quartz Lamp (included) May only be used with ED17 and PAR20 lamps (35W, 70W, 100W only)Listing: UL Damp Location w/ Feed ThroughSpecification Sheet Baffle TrimsSpecification Sheet Cross Louver TrimsSpecification Sheet Lensed TrimsSpecification Sheet Reflector TrimsSpecification Sheet Wall Wash Trims
