Nora Lighting . NHIC-5LMRAT

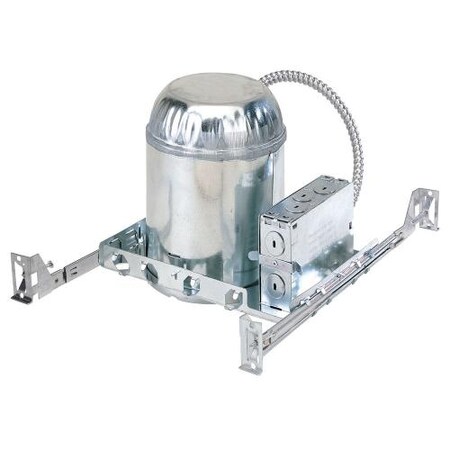

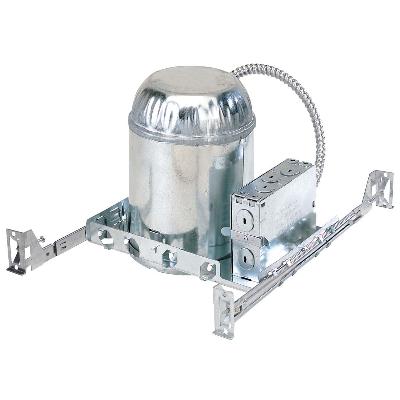

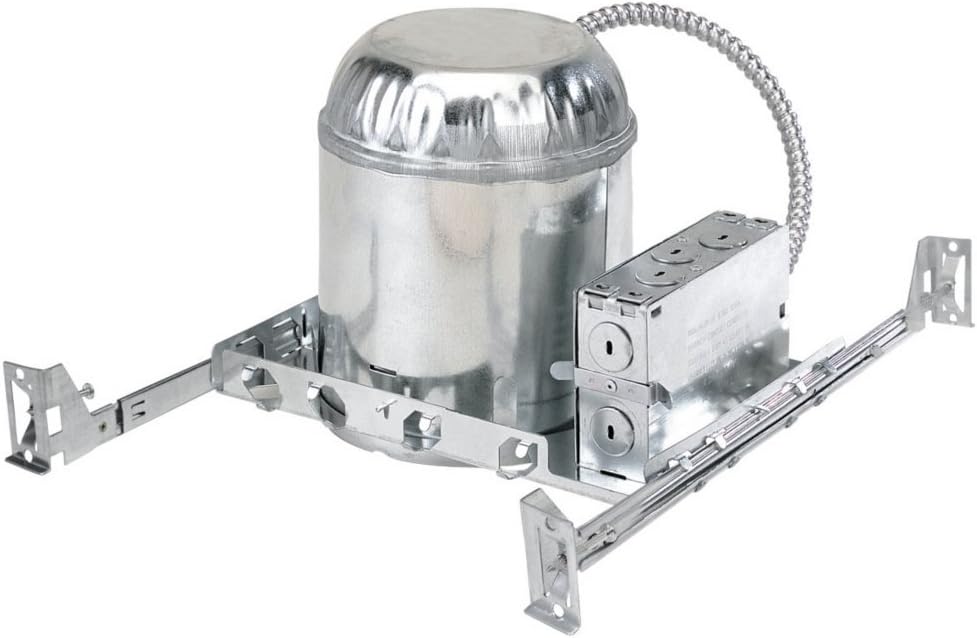

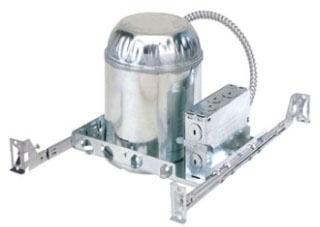

The Nora LED Diamond Series housings are designed for use with Diamond Series trims. IC housings are high quality, light weight units ideal for use in insulated ceilings. Airtight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation and combustive materials, Nora IC housings are easy and quick to install. Minimum Clearances: IC Housings are direct contact rated; no minimum clearance is required. Ceiling Thickness: Housing adjusts from 5/8' 1' to accommodate various ceiling thicknesses. Bar Hangers: Bar hangers are adjustable from 13-5/8' to 24' and can be repositioned 90 Junction Box: Junction box is listed for through branch circuit wiring and contains seven 1/2' knockouts and four ROMEX pryouts with strain relief. Electrical: Quick Connector provided. Compatible LED Diamond Trims: NLEDC-561, NLEDC-571 (Wet), NLEDC-562, NLEDC-572 (Wet)

, The CYE LED Diamond Series housings are designed for use with Diamond Series trims. IC housings are high quality, light weight units ideal for use in insulated ceilings. Airtight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation and combustive materials, CYE IC housings are easy and quick to install. Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required Ceiling Thickness: Housing adjusts from 5/8" – 1-1/4" to accommodate various ceiling thicknesses. Bar Hangers: Bar hangers are adjustable from 13-5/8" to 24-1/2" and can be repositioned 90º Junction Box: Junction box is listed for through branch circuit wiring and contains seven 1/2" knockouts and four ROMEX pryouts with strain relief Electrical: Quick Connector provided Compatible LED Diamond Trims: CYNLEDC-561 or CYNLEDC-562 Dimensions: Length: 10-1/2" Width: 7-1/4" Depth: 7-1/2" Ceiling Opening: 5-3/8" Listing: cULus Listed for Damp Location w/ Feed Through WSEC ASTM E283 for Air-Tight Title 24 Compliant Energy Star Rated RoHS Compliant Conforms to IESNA LM-79 and LM-80 Energy Star Rated

The Nora LED Diamond Series housings are designed for use with Diamond Series trims. IC housings are high quality, light weight units ideal for use in insulated ceilings. The 5 inch IC Air-Tight Dedicated New Construction Housing is made of airtight construction, reducing energy costs by reducing the amount of air escaping through the ceiling. The 5 inch IC Air-Tight Dedicated New Construction Housing is rated for direct contact with insulation and combustive materials, and Nora IC housings are easy and quick to install. Housing adjusts from 5/8" – 1-1/4" to accommodate various ceiling thicknesses.
