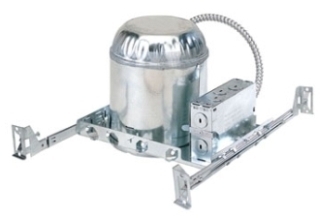

Nora Lighting . NHIC-6LMRAT

Designed for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires Features IC Air-Tight energy saving by reducing the flow of air through the ceiling Rated for direct contact with insulation cULus listed for damp location and through branch circuit wiring 24-1/2” Bar hangers with captive nails and alignment foot Insulated ceiling rated and airtight Requires (1) 16 watt LED bulb Capable of being dimmed with compatible dimmable bulbs (not included) CUL rated for damp locations Covered under a 1 Year Limited manufacturer Dimensions Trim Size: 6" Height: 7-1/2" Width: 8-3/4" Depth: 6-1/2" Product Weight: 2 lbs Cutout Size: 6-3/8" Electrical Specifications Number of Bulbs: 1 Max Watts Per Bulb: 16 watts Bulb Type: LED Bulb Included: No

, The CYE LED Diamond Series housings are designed for use with Diamond Series trims. IC housings are high quality, light weight units ideal for use in insulated ceilings. Airtight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation and combustive materials, CYE IC housings are easy and quick to install. Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required Ceiling Thickness: Housing adjusts from 5/8" – 1-3/8" to accommodate various ceiling thicknesses. Bar Hangers: Bar hangers are adjustable from 13-5/8" to 24-1/2" and can be repositioned 90º Junction Box: Junction box is listed for through branch circuit wiring and contains seven 1/2" knockouts and four ROMEX pryouts with strain relief Electrical: Quick Connector provided Compatible LED Diamond Trims: CYNLEDC-661 or CYNLEDC-662 Dimensions: Length: 10-1/8" Width: 7" Depth: 7-1/2" Ceiling Opening: 6-3/8" Listing: cULus Listed for Damp Location w/ Feed Through WSEC ASTM E283 for Air-Tight Title 24 Compliant Energy Star Rated RoHS Compliant Conforms to IESNA LM-79 and LM-80 Energy Star Rated

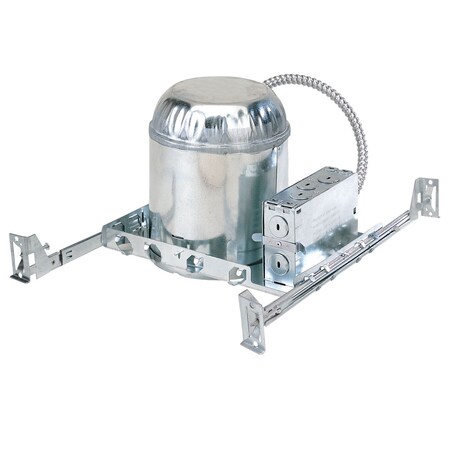

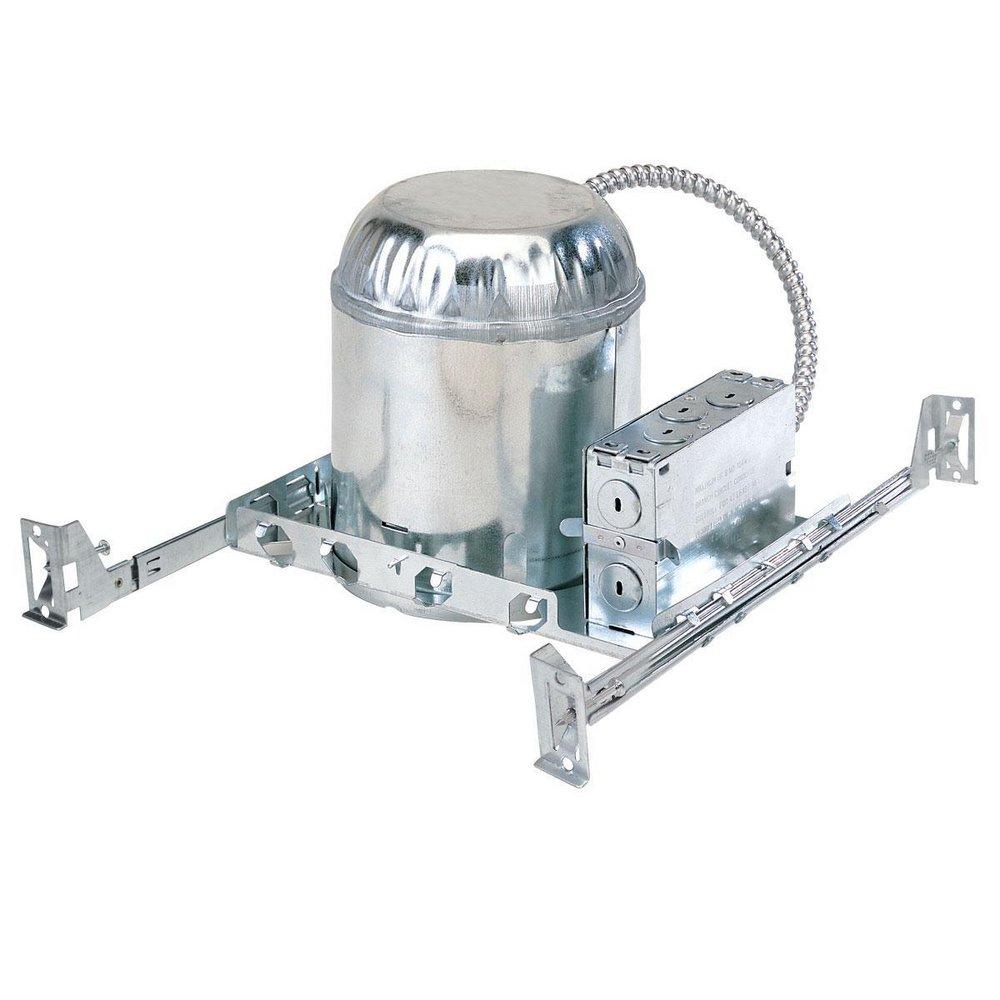

The 6 inch IC Air-TightDedicated New Construction Housing is designed for use with Diamond Series trims. IC housings are high quality, light weight units ideal for use in insulated ceilings. The 6 inch IC Air-TightDedicated New Construction Housing is made of airtight construction, reducing energy costs by reducing the amount of air escaping through the ceiling. The 6 inch IC Air-TightDedicated New Construction Housing is rated for direct contact with insulation and combustive materials, and Nora IC housings are easy and quick to install. Housing adjusts from 5/8" – 1-3/8" to accommodate various ceiling thicknesses. Transform your lighting system with the 6 inch IC Air-TightDedicated New Construction Housing.
