Nora . NL-601Q

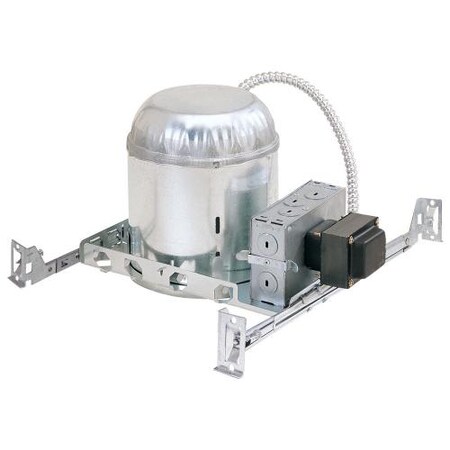

nl-601q, nora, 6", low, voltage, new, construction, housing, NL-601 Series6" Low Voltage New Construction Housing DESCRIPTION:Nora Lighting’s series of 6" low voltage housings provides crisp, defined quartz halogen illumination from MR16, AR111 or PAR36 light sources to any application. A wide variety of attractive adjustable trims allows fine-tuned aiming of directional light sources. Transformer: Housings are available with either 120V or 277V input and 12V 50 or 75 watt output in any combination magnetic or electronic. Minimum Clearances: Non-IC housings require minimum clearances of 3" from thermal insulation and 1/2" from adjacent building components.Ceiling Thickness: Ceiling thickness varies from 5/8" – 1-3/8"Lamp Adjustment: Circular bracket on low voltage trims provides a secure snap-in hold and friction-locked aiming adjustment. UV/Shatter Guard Shield: All low voltage trims include a tempered UV/shatter shield. Dimming: Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer.Installation: Bar hangers are adjustable from 13-5/8" to 24" and can be repositioned 90 degrees.Junction Box: Contains seven 1/2" knockouts and four Romex pryouts with strain relief.Electrical: Quick connector provided Listing: UL Damp Location w/ Feed ThroughSpecification Sheet Adjustable TrimsSpecification Sheet Baffle TrimsSpecification Sheet Glass TrimsSpecification Sheet Reflector TrimsSpecification Sheet Wall Wash Trims

Reduced wattage housings are useful in meeting watts per square foot requirements. Available with magnetic or electronic transformers. A wide variety of attractive adjustable trims allow for fine-tuned aiming of directional light sources. Features Air-Tight energy saving by reducing the flow of air through the ceiling cULus listed for damp location and through branch circuit wiring 24-1/2” Bar hangers with captive nails and alignment foot Can be labeled for lower wattages Housing is not rated for insulated ceilings Requires (1) 50 watt GU5.3 bulb Capable of being dimmed with compatible dimmable bulbs (not included) CUL rated for damp locations Covered under a 1 Year Limited manufacturer Dimensions Trim Size: 6" Height: 7-1/2" Width: 7-1/2" Depth: 12-1/2" Product Weight: 2.5 lbs Cutout Size: 6-3/8" Electrical Specifications Number of Bulbs: 1 Max Watts Per Bulb: 50 watts Bulb Base: GU5.3 Bulb Included: No
