Nora NLR-404/75 4 Inch 75 Watt 120V/12V Magnetic Remodel Hou

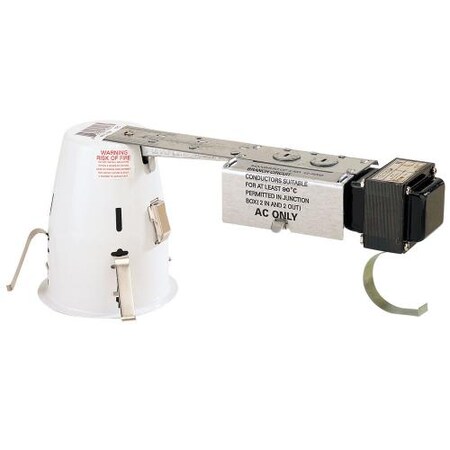

Nora Lighting NLR-404/75 4" Low Voltage Remodel Housing, 75W Max, 120V Magnetic

nlr-404/75, nora, 4", low, voltage, remodel, housing, NLR-404 Series4" Low Voltage Remodel HousingDESCRIPTION:Nora Lighting’s series of 4" low voltage housings provides crisp, defined MR16 quartz halogen illumination to any application. New airtight unit provides energy savings to non-IC applications by reducing the flow of air through the ceiling. A wide variety of attractive adjustable trims allows fine-tuned aiming of direction light sources. Transformer: Housings are available with either 120V or 277V input and 12V 50 or 75 watt output in any combination. Minimum Clearances: Non-IC housings require minimum clearances of 3" from thermal insulation and ½" from adjacent building components. Ceiling Thickness: Ceiling thickness varies from 3/8" – 1-3/8" Lamp Adjustment: Circular bracket on low voltage trims provide a secure snap-in hold and friction-locked aiming adjustment. UV/Shatter Guard Shield: All low voltage trims include a tempered UV/shatter shield. Dimming: Use only magnetic low voltage dimming control with magnetic transformer or electronic low voltage control with electronic transformer. Installation: High tension tempered steel springs secure remodel housings evenly to ceiling; hole cutout template provided for convenience. Junction Box: Contains two ¾", three ½" knockouts and four Romex pryouts with strain relief.Electrical: Quick connector provided Listing: UL Damp Location w/ Feed ThroughWashington State EC ASTM E283 for Air Tight (AT only)Specification Sheet Adjustable TrimsSpecification Sheet Decorative TrimsSpecification Sheet Open TrimsSpecification Sheet Shower TrimsSpecification Sheet Wall Wash Trims
