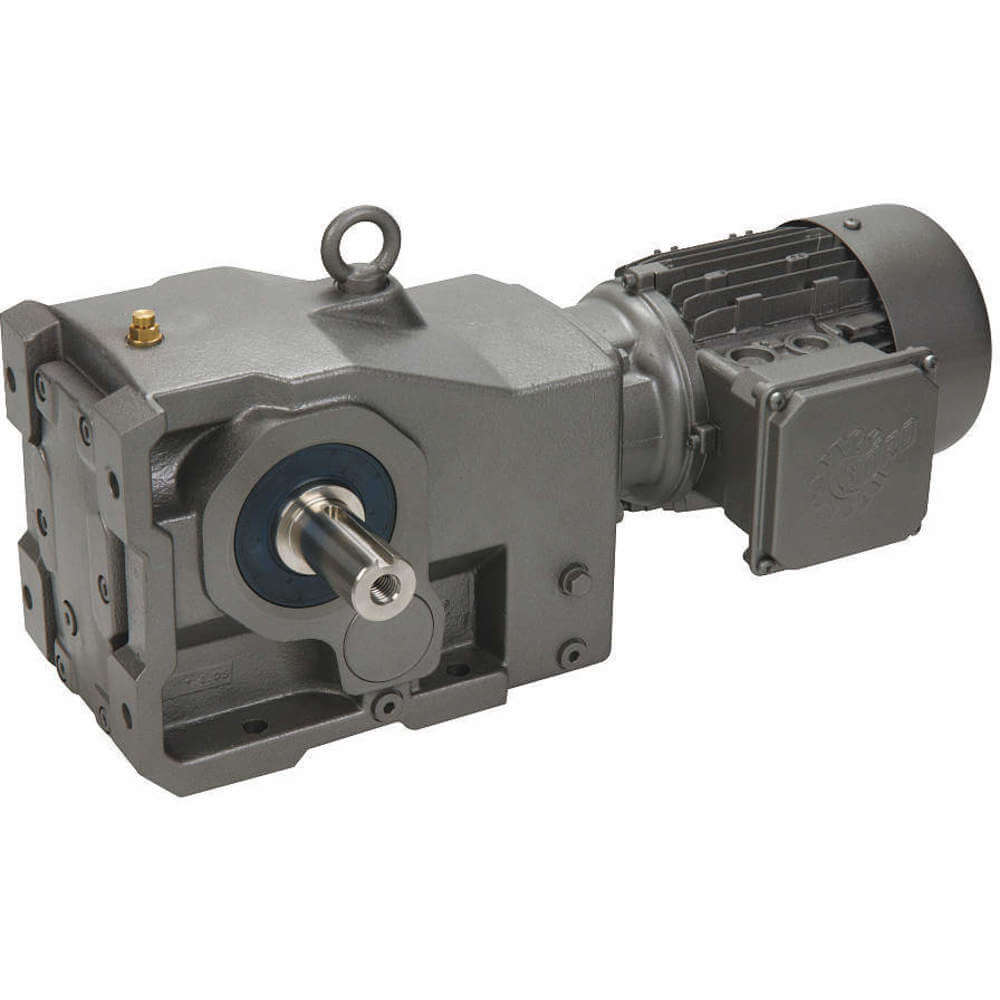

Technical Specification Item AC Gearmotor Gearmotor Type AC Gearmotor Gearmotor Voltage 230/460VAC Gearmotor Phase 3 Max. Torque 931 in.-lb Gearmotor Shaft Type Single Left Gearmotor Shaft Orientation Right Angle Gearmotor Rotation CW/CCW Nameplate RPM 17 Gearmotor Enclosure Totally Enclosed Fan-Cooled Gearmotor Mounting Position All Angle Gearmotor Brake Type None Hz 60/50 Overhung Load 1607 lb. Input HP 1/4 Gear Ratio 97:1 Full Load Amps 1.1/0.56 Motor Type 3-Phase Shaft Dia. (Dimension U) 1-1/4 Shaft Length (Dimension V) 2-5/16 Lubrication Oil Filled Finish Stainless Steel Paint Application Inverter Duty Standards CE Certified, CSA Certified, UL Recognized This listing is for each. Gearmotor Shaft Orientation : Right Angle Overhung Load : 1, 607 lb Rotation : Reversible Standards : UL Recognized, CSA Certified, CE Certified Voltage : 230/460 Gearmotor Brake Type : None Nameplate RPM : 17 RPM Full Load Amps : 1.1/0.56 Shaft Orientation : Right Angle Gearmotor Rotation : CW/CCW Hz : 60/50 Hz Finish : Stainless Steel Paint Shaft Length (Dimension V) : 2.3125 in Enclosure : TEFC Shaft Dia. (Dimension U) : 1 1/4 in Gearmotor Phase : 3 Max. Torque : 931 in-lb Lubrication : Oil Filled RPM Range : 16 to 30 Mounting : All Position Gearmotor Mounting Position : All Angle Gearmotor Voltage : 230/460V AC Gearmotor Type : AC Gearmotor Gearmotor Shaft Type : Single Left Input HP : 1/4 hp Gear Ratio : 97:1 Motor Type : 3-Phase Item : AC Gearmotor Phase : 3 Application : Inverter Duty Gearmotor Enclosure : Totally Enclosed Fan-Cooled Shaft Dia. (In.) : Dimension N : RPM @ 50 Hz : Capacitor Required : Dimension F : Dimension S : Dimension B : Dimension AB : Dimension AA : Service Factor : Gear Case : Bearings : Starting Torque : Brake : Full Load Torque (In.-Lbs.) : Overall Length : Insulation Class : No Load RPM : Shaft : Includes : Mounting Holes : Dimension BA : Dimension H : Mounting Hole Dia. (In.) : Gear Type : Agency Compliance : Height (Dimension
