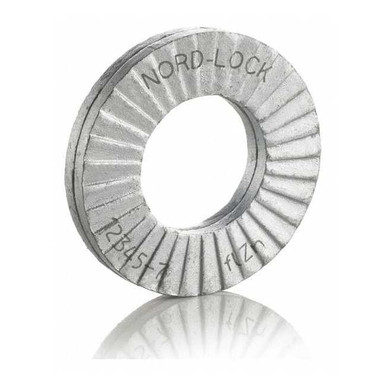

Wedge Lock Washer, Lock Washer Type Wedge Lock, Finish Delta Protect, Material Steel, For Screw Size 1 1/8 in, Inside Diameter 1.24 in, Outside Diameter 2.3 in, Assembly Thickness 0.26 in, Assembly Thickness Tolerance +/-0.02 in, Color Silver, Dimensional Standards DIN 25201, Material Grade/Class Not Graded, Pack Size Small Pack, Rockwell Hardness HRC46, System of Measurement Metric

The Nord-Lock system is comprised of a pair of washers that has cams on one side and radial teeth on the opposite side. Since the cam angle is greater than the thread pitch, a wedge effect is created by the cams, preventing the bolt from rotating loose. Over the operational life cycle, Nord-Lock washers offer increased operational reliability and lower maintenance costs, while significantly reducing the risks of production stops, accidents and warranty claims. The Nord-Lock Group is a world leader in secure bolted solutions. Our mission is to safeguard human lives and customer investments. Our products are recognized for their ability to safely secure bolted joints exposed to severe vibration and dynamic loads.
