NSI . IPL3/0-5

NSI . IPL3/0-5

Gallery

Attributes

Brand name, Manufacturer name, BrandNSI
ManufacturerNSI NSi Industries
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
AsinB008KNHTQ2
Bullet_pointConnectors
ClassificationId495266
ColorBlack
Cpsia_cautionary_statementno_warning_applicable
Decimal_value6.0
DisplayNameElectrical
Height1206 2 2.0 2.299999997654 318 48 5.842
Identifier0662381912039 662381912039
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT

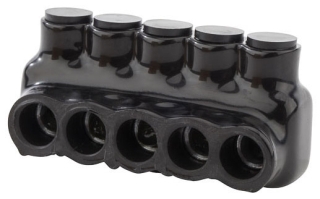

ItemName, Item_nameNSI 3/0-6 AWG Polaris Insulated Connector, IPL3/0-5
Item_package_quantity, PackageQuantity1
Item_package_weight0.2494758035
Item_type_keywordterminals
Item_weight0.46
Keyword, ModelNumber, Model_number, Mpns, PartNumber, Part_numberIPL3/0-5
Length14.986 3 3.0 5.899999993982
Linkhttps://m.media-amazon.com/images/I/41v-0snm-2L._SL75_.jpg https://m.media-amazon.com/images/I/41v-0snm-2L.jpg https://m.media-amazon.com/images/I/71PwgcvXl9L.jpg
MaterialAluminum Copper
Maximum_voltage, Operating_voltage600.0
Measurement_systemImperial
ProductTypeELECTRONIC_COMPONENT_TERMINAL
Product_description5 Wire Polaris 3/0-6 AWG Insul-Tap ConnectorPolaris Insulated Multi-Cable Connectors have wire entry ports on one side only. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over the hex screws. Abrasion and chemical resistant. UV resistant. Will not support combustion. UL Listed UL486B Wire Connector. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire (see Polaris Grey Series).SPECIFICATIONS:QUANTITY: 1 CountCOLOR: BlackRATED: 600 VoltsNO. OF PORTS: 5WIRE ALIGNMENT: Same SideWIRE RANGE: 3/0 - 6 AWGLENGTH: 4.19 in.HEIGHT: 1.80 in.WIDTH: 1.60 in.TORQUE VALUE (IN/LBS): 250HEX SIZE: 5 /16BRAND EQUIVALENT: Ilsco PBTS-5-3/0 Blackburn AMTS3065 MANUFACTURER: NSi IndustriesPART NUMBER: IPL3/0-5UPC: 662381912039 We have the best selection and prices on connectors.
Product_site_launch_date2013-06-14T13:06:50.503Z
Size3 x 1 x 2 inches
Specification_metUL
String_value6
StrippedMpnsIPL305
Temperature_rating90 degree celsius
Terminal_typeScrew Terminal
TypeCount ean upc
Unitcentimeters inches kilograms pounds volts
Unit_count1.0
VariantMAIN
Voltage120.0
WebsiteDisplayGrouphome_improvement_display_on_website
WebsiteDisplayGroupNameHome Improvement
Weight0.46 0.5499999995387752
Width1 1.0 10.921999999999999 1899 4.299999995614 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Monarch Electric40381911
gordonelectricsupply.comIPL3/0-51-211 @ $54.83
steinerelectric.com287609111 @ $76.70
Lighting SupplyIPL3/0-5141 @ $224.92
Crescent Electric Supply Co220070211

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

NSI 3/0-6 AWG Polaris Insulated Connector, IPL3/0-5
Brand: NSI
5 Wire Polaris 3/0-6 AWG Insul-Tap ConnectorPolaris Insulated Multi-Cable Connectors have wire entry ports on one side only. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over the hex screws. Abrasion and chemical resistant. UV resistant. Will not support combustion. UL Listed UL486B Wire Connector. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire (see Polaris Grey Series).SPECIFICATIONS:QUANTITY: 1 CountCOLOR: BlackRATED: 600 VoltsNO. OF PORTS: 5WIRE ALIGNMENT: Same SideWIRE RANGE: 3/0 - 6 AWGLENGTH: 4.19 in.HEIGHT: 1.80 in.WIDTH: 1.60 in.TORQUE VALUE (IN/LBS): 250HEX SIZE: 5 /16BRAND EQUIVALENT: Ilsco PBTS-5-3/0 Blackburn AMTS3065 MANUFACTURER: NSi IndustriesPART NUMBER: IPL3/0-5UPC: 662381912039 We have the best selection and prices on connectors.
Details
  • Connectors
Analytics
Case Qty1 units
