Polaris Insulated Multi-Cable Connector Block, Wire Entry From One Side, IPL Series, 4-14 AWG Wire Range, 3 Ports, 1/...
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Monarch Electric | 269264 | 1 | 1 | ||
 gordonelectricsupply.com | IPL4-3A | 1 | 1 | 1 @ $22.53 | |
| IPL4-3A | 1 | -2 | 1 | 1 @ $24.60 | |
| AmazonSC | B008KNX45M | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
NSI Industries Polaris Black IPL4-3A Insulated Multi-tap Connector - 3-Port Single-Sided Entry for 4-14 AWG Wire Range - Dry Locations - Dual-rated for cooper and/or aluminum - 1.188-inch width, 1.375-inch height, 1.55-inch length - Hex size 1/8-inch
Brand: NSI
Details
- COMFORTABLE HANDLING/GRIP: Contractor-friendly ergonomic design with smooth edges and rounded corners provide a secure grip for maximum torque
- FAST INSTALLATION: Only a hex key and torque wrench needed; no need for extra tools and insulating tape
- HIGH-QUALITY CONSTRUCTION: Insulated with high dielectric strength plastisol for increased chemical and abrasion protection; 6061-T6 aluminum alloy construction
- RELIABLE: Removable plugs ensure secure entry port closure while preventing debris from entering connector
- WIRE TYPE: Dual-rated for use with copper and/or aluminum Class B or C building code class conductors
Analytics
| Offers | 3 |
|---|---|
| Case Qty | 1 units |
| Last Price | $67.27 |
Polaris Insulated Multi-Cable Connector Block, Wire Entry from One Side, IPL Series, 4-14 AWG Wire Range, 3 Ports, 1/8" Hex, 1.12" Width, 1.5" Height, 1.54" Length
Brand: NSI

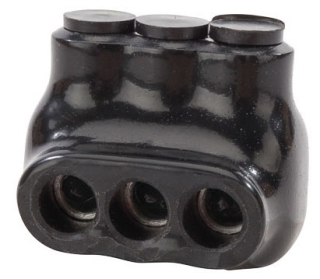

This NSi Industries IPL4-3A Polaris insulated connector block connects up to three cables from American Wire Gauge (AWG) #4 to #14. It is insulated with plastisol for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation, and is dual rated for use with both copper and aluminum cables. It is not recommended for use with fine-stranded, flexible wire, and does not support combustion applications. The connector comes with removable access plugs that cover 1/8" hex screws, which hold the wires in place in the block. Wire entry ports are located on one side of the connector only. The connector is rated for 600V and has a temperature range of -45 to +90 degrees C. It measures 1.54 x 1.5 x 1.12 inches (L x H x W), and is Underwriters Laboratories (UL) and Underwriters Laboratories of Canada (cUL) Listed. (L is length, the horizontal distance from left to right; H is height, the vertical distance from bottom to top; W is width, the horizontal distance from front to back.) This insulated connector block is suitable for a wide range of electrical applications with appropriately sized conductors.
Details
- Insulated three-cable connector block for use with wires from #4 to #14 AWG
- Insulated with plastisol for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation
- Dual rated for use with both copper and aluminum cables
Listing
| Product group | Office Product |
|---|---|
| Product type | TERMINAL_BLOCK |
| Part number | IPL4-3A |
| Label | NSI |
| Manufacturer | NSI |
Analytics
| Case Qty | 1 units |
|---|
NSi Industries, LLC Polaris Insulated Multi-Cable Connector Block
Brand: NSI
This NSi Industries IPL4-3A Polaris insulated connector block connects up to three cables from American Wire Gauge (AWG) #4 to #14. It is insulated with plastisol for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation, and is dual rated for use with both copper and aluminum cables. It is not recommended for use with fine-stranded, flexible wire, and does not support combustion applications. The connector comes with removable access plugs that cover 1/8" hex screws, which hold the wires in place in the block. Wire entry ports are located on one side of the connector only. The connector is rated for 600V and has a temperature range of -45 to +90 degrees C. It measures 1.54 x 1.5 x 1.12 inches (L x H x W), and is Underwriters Laboratories (UL) and Underwriters Laboratories of Canada (cUL) Listed. (L is length, the horizontal distance from left to right; H is height, the vertical distance from bottom to top; W is width, the horizontal distance from front to back.) This insulated connector block is suitable for a wide range of electrical applications with appropriately sized conductors.
Details
- Insulated three-cable connector block for use with wires from #4 to #14 AWG
- Insulated with plastisol for high-dielectric strength and resistance to chemicals, abrasion, and UV radiation
- Temperature range of -45 to +90 degrees C
Listing
| Product group | Office Product |
|---|---|
| Product type | TERMINAL_BLOCK |
| Part number | IPL4-3A |
| Label | NSi |
| Manufacturer | NSi |
Analytics
| Case Qty | 1 units |
|---|
