NSi . IPLD750-3

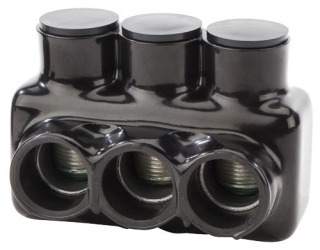

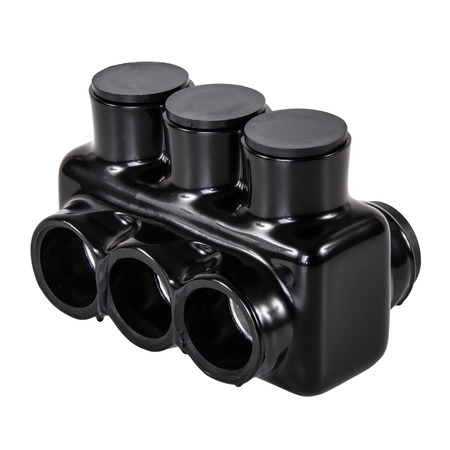

3 Wire Non-UL Polaris 750 - 250 MCM Insulated Multi-Cable Connector Block, Either Side Wire EntryPolaris Insul-Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. UV resistant. Will not support combustion. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C.Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.SPECIFICATIONS:QUANTITY: 1 CountRATED: 600 VoltsNO. OF PORTS: 3WIRE ALIGNMENT: Either SideWIRE RANGE: 750 - 250 MCMLENGTH: 4.95 in.WIDTH: 3.41 in.HEIGHT: 3.42 in.TORQUE VALUE (IN./LBS): 550HEX SIZE: 3/8 in.BRAND EQUIVALENT: Blackburn AMTD7502503 Burndy BIBD-750-3 Greaves USAD-750-3 Homac CSB-750-3 Ilsco PBTD-3-750 Morris 97673 Panduit PCSB750-3-2Y MANUFACTURER: NSi IndustriesPART NUMBER: IPLD750-3UPC: 662381926012 We have the best selection and prices on connectors.

3 Wire Non-UL Polaris 750 - 250 MCM Insulated Multi-Cable Connector Block, Either Side Wire EntryPolaris Insul-Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. UV resistant. Will not support combustion. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire. SPECIFICATIONS: QUANTITY: 1 Count RATED: 600 Volts NO. OF PORTS: 3 WIRE ALIGNMENT: Either Side WIRE RANGE: 750 - 250 MCM LENGTH: 4.95 in. WIDTH: 3.41 in. HEIGHT: 3.42 in. TORQUE VALUE (IN./LBS): 550 HEX SIZE: 3/8 in. BRAND EQUIVALENT: Blackburn AMTD7502503 Burndy BIBD-750-3 Greaves USAD-750-3 Homac CSB-750-3 Ilsco PBTD-3-750 Morris 97673 Panduit PCSB750-3-2Y MANUFACTURER: NSi Industries PART NUMBER: IPLD750-3 UPC: 662381926012 We have the best selection and prices on connectors.
