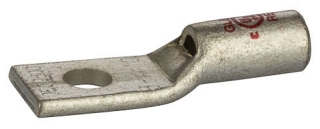

Copper Compression Connector, Peep Hole Copper Lug, GL Series, One Hole Nema, #10 Stud, 1/2" Strip Length, 0.27" OD, ...

NSI . GL810

Gallery

Attributes

Brand name, Manufacturer name, BrandNSI
ManufacturerNSI NSi Industries
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
AsinB00CTT9LC8 B00ZETYRWO
Bullet_pointConnectors For applications greater than 2000 volts Listed for 35 KV maximum when properly installed Marked with die index and color coded Produced from high conductivity copper D tubing Tin-Plated to provide corrosion resistance
Chemical_nameslead
ClassificationId3741181 495266
ColorCopper Red
Compliance_typechemical
Cpsia_cautionary_statementno_warning_applicable
CurrencyUSD
DisplayNameElectrical Parts & Accessories
Generic_keywordbetts lugs compression lug crimp lugs
Height1200 2 2.0 3.0 375 450 56 75
Identifier00662381987761 0662381036001 0662381987761 662381036001 662381987761
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name1 Hole Short Barrel Copper Compression Lug with Peep Hole 8 AWG - #10 Bolt - 1 Count NSI GL810 Series GL Compression Peep Hole Copper Lug, One Hole NEMA, 10 Stud, 1/2" Strip Length, 0.27" OD, 0.42" Width, 1.20" Length, 0.08" Thick, Red
Item_package_quantity, PackageQuantity1
Item_package_weight, Unit_count1.0
Item_type_keywordappliance-replacement-parts rectangular-terminals
Item_weight0.1
KeywordCT 1 GL810
Length3 3.0 4 4.0
Linkhttps://m.media-amazon.com/images/I/31FLL-SPioL._SL75_.jpg https://m.media-amazon.com/images/I/31FLL-SPioL.jpg https://m.media-amazon.com/images/I/41Ypy-mWVTL._SL75_.jpg https://m.media-amazon.com/images/I/41Ypy-mWVTL.jpg https://m.media-amazon.com/images/I/61wh1NHLIVL.jpg
List_price184.01
Marking_typeepa_registration_number
MaterialCopper
Maximum_voltage2000.0
Measurement_systemImperial
ModelNumber, Model_number, Mpns, PartNumber, Part_number, StrippedMpnsGL810
Number_of_items100
ProductTypeELECTRONIC_COMPONENT_TERMINAL
Product_description1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 8 AWG - #10 BoltShort Barrel Copper Compression Lugs with Peep Hole are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Listed for 35KV maximum when properly installed. AL9CU. Rated 600V, 90 degrees C. SPECIFICATIONS: QUANTITY: 1 Count RATED: 35KV Max HOLES: 1 WIRE RANGE: 8 AWG EXPANDED WIRE RANGE: 8 AWG COLOR CODE: Red BOLT SIZE: #10 ID: 0.173 OD: 0.272 LENGTH: 1.201 WIDTH: 0.421 END OF CONN. TO CTR.: 0.276 TANG LENGTH: 0.591 BARREL LENGTH: 0.441 TANG THICKNESS: 0.079 MTG. HOLE DIA.: 0.209 BRAND EQUIVALENT: Ilsco CRA8 Thomas & Betts 54104 Burndy YA8CL-BOX Penn Union BLU8S14 Morris Products 94010 Panduit LCA8-10-L MANUFACTURER: NSi Industries PART NUMBER: GL810 UPC: 662381036001 We have the best selection and prices on connectors.
Product_site_launch_date2013-05-16T19:06:55.234Z 2015-06-11T05:44:41.895Z
Registration_statusfifra_not_considered_pesticide
ReleaseDate2017-03-12
Size0.17" x 0.27" 3 x 1 x 2 inches
Specification_metcULus
Street_date2017-03-12T00:00:01Z
Style#10
Terminal_typeRing Terminal
TypeCount ean gtin upc
Unitinches pounds volts
VariantMAIN
Voltage120.0
WebsiteDisplayGroupbiss_basic_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameBISS Basic Home Improvement
Weight0.1 1 1.0
Width1 1.0 1600 2.0 3 450 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Elliott ElectricGL8101Call for Availability11 @ $2.51
gordonelectricsupply.comGL8101NSI Orders Over $150 Usually Ship Next Day Otherwise 5-7 Days11 @ $2.07
Lighting SupplyNSI-GL81011001 @ $212.00
Crescent Electric Supply Co213499811

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

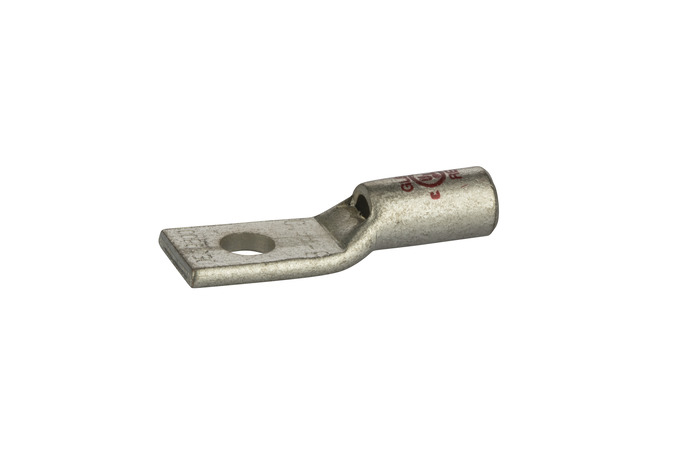

NSI GL810 Series GL Compression Peep Hole Copper Lug, One Hole NEMA, 10 Stud, 1/2" Strip Length, 0.27" OD, 0.42" Width, 1.20" Length, 0.08" Thick, Red
Brand: NSI
Details
  • Produced from high conductivity copper D tubing
  • Tin-Plated to provide corrosion resistance
  • Marked with die index and color coded
  • Listed for 35 KV maximum when properly installed
  • For applications greater than 2000 volts
Analytics
Categoryindustrial
Offers2
Case Qty100 units
View on Amazon (paid link)
1 Hole Short Barrel Copper Compression Lug with Peep Hole 8 AWG - #10 Bolt - 1 Count
Brand: NSI
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 8 AWG - #10 BoltShort Barrel Copper Compression Lugs with Peep Hole are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Listed for 35KV maximum when properly installed. AL9CU. Rated 600V, 90 degrees C. SPECIFICATIONS: QUANTITY: 1 Count RATED: 35KV Max HOLES: 1 WIRE RANGE: 8 AWG EXPANDED WIRE RANGE: 8 AWG COLOR CODE: Red BOLT SIZE: #10 ID: 0.173 OD: 0.272 LENGTH: 1.201 WIDTH: 0.421 END OF CONN. TO CTR.: 0.276 TANG LENGTH: 0.591 BARREL LENGTH: 0.441 TANG THICKNESS: 0.079 MTG. HOLE DIA.: 0.209 BRAND EQUIVALENT: Ilsco CRA8 Thomas & Betts 54104 Burndy YA8CL-BOX Penn Union BLU8S14 Morris Products 94010 Panduit LCA8-10-L MANUFACTURER: NSi Industries PART NUMBER: GL810 UPC: 662381036001 We have the best selection and prices on connectors.
Details
  • Connectors
Analytics
Offers1
View on Amazon (paid link)
