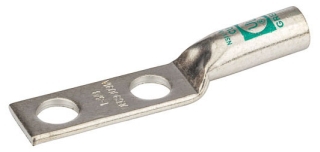

Copper Compression Connector, Long Barrel Copper Lug, LN Series, Two Hole Nema, 3/8" Stud, 1-1/2" Strip Length, 0.47"...

NSI . L1N-38

Gallery

Attributes

Brand name, Manufacturer name, BrandNSI
ManufacturerNSI NSi Industries
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
AsinB00CTT8ITK B00ZEVLZZE
Bullet_pointAllows easy inspection of the termination to assure complete cable insertion Connectors Listed for 35 KV maximum when properly installed Marked with die index and color coded Produced from high conductivity copper tubing Tin-Plated to provide corrosion resistance
ClassificationId495266
ColorGreen
Cpsia_cautionary_statementno_warning_applicable
CurrencyUSD
DisplayNameElectrical
Generic_keywordbetts lugs compression lug crimp lugs
Height1200 2 2.0 3.0 375 450 56 75
Identifier00662381991027 0662381339102 0662381991027 662381339102 662381991027
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name2 Hole Long Barrel Copper Compression Lug 1 AWG - 3/8" Bolt - 1 Count NSI L1N-38 Series LN Compression Long Barrel Copper Lug, Two Hole NEMA, 3/8" Stud, 1-1/2" Strip Length, 0.47" OD, 0.67" Width, 3.07" Length, 0.11" Thick, Green
Item_package_quantity, PackageQuantity1
Item_package_weight, Unit_count1.0
Item_type_keywordother-products ring-terminals
Item_weight0.1
Keyword30695 L1N
Length3 3.0 4 4.0
Linkhttps://m.media-amazon.com/images/I/31+CjrIrCtL._SL75_.jpg https://m.media-amazon.com/images/I/31+CjrIrCtL.jpg https://m.media-amazon.com/images/I/31e96ozk0AL._SL75_.jpg https://m.media-amazon.com/images/I/31e96ozk0AL.jpg https://m.media-amazon.com/images/I/61Ia2w2NitL.jpg
List_price645.59
MaterialCopper
Maximum_voltage2000.0
Measurement_systemImperial
ModelNumber, Model_number, Mpns, PartNumber, Part_numberL1N-38
Number_of_items50
ProductTypeELECTRONIC_COMPONENT_TERMINAL
Product_description2 Hole Long Barrel Copper Compression Lug 1 AWG - 3/8" BoltLong Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C. SPECIFICATIONS:QUANTITY: 1 CountRATED: 35KV MaxHOLES: 2WIRE RANGE: 1 AWGEXPANDED WIRE RANGE: 1-6 AWG COLOR: GreenBOLT SIZE: 3/8"ID: 0.360OD: 0.470LENGTH: 3.070WIDTH: 0.670END OF CONN TO CTR.: 0.380TANG LENGTH: 1.810BARREL LENGTH: 1.100TANG THICKNESS: 0.100MTG. HOLE DIA.: 0.410MTG. HOLE SPACING: 1.000 BRAND EQUIVALENT: Burndy YA1C2TC38Panduit LCC1-38D-E Penn Union BBLU-1D-2TC38 Thomas & Betts 256-30695-1161 MANUFACTURER: NSi IndustriesPART NUMBER: L1N-38UPC: 662381339102 We have the best selection and prices on connectors.
Product_site_launch_date2013-05-16T19:05:16.937Z 2015-06-11T05:58:59.884Z
ReleaseDate2017-03-12
Size0.36" x 0.47"
Specification_metcULus
Street_date2017-03-12T00:00:01Z
StrippedMpnsL1N38
Stud_size3/8
Style3/8 inches
TypeCount ean gtin upc
Unitinches pounds volts
VariantMAIN
Voltage120.0
WebsiteDisplayGroupbiss_basic_display_on_website home_improvement_display_on_website
WebsiteDisplayGroupNameBISS Basic Home Improvement
Weight0.1 1
Width1 1.0 1600 2.0 3 450 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
gordonelectricsupply.comL1N-381NSI Orders Over $150 Usually Ship Next Day Otherwise 5-7 Days11 @ $15.38
Lighting SupplyNSI-L1N-381501 @ $788.50
Crescent Electric Supply Co211718811

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

NSI L1N-38 Series LN Compression Long Barrel Copper Lug, Two Hole NEMA, 3/8" Stud, 1-1/2" Strip Length, 0.47" OD, 0.67" Width, 3.07" Length, 0.11" Thick, Green
Brand: NSI
Details
  • Produced from high conductivity copper tubing
  • Allows easy inspection of the termination to assure complete cable insertion
  • Tin-Plated to provide corrosion resistance
  • Marked with die index and color coded
  • Listed for 35 KV maximum when properly installed
Analytics
Offers2
Case Qty50 units
View on Amazon (paid link)
2 Hole Long Barrel Copper Compression Lug 1 AWG - 3/8" Bolt - 1 Count
Brand: NSI
2 Hole Long Barrel Copper Compression Lug 1 AWG - 3/8" BoltLong Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C. SPECIFICATIONS:QUANTITY: 1 CountRATED: 35KV MaxHOLES: 2WIRE RANGE: 1 AWGEXPANDED WIRE RANGE: 1-6 AWG COLOR: GreenBOLT SIZE: 3/8"ID: 0.360OD: 0.470LENGTH: 3.070WIDTH: 0.670END OF CONN TO CTR.: 0.380TANG LENGTH: 1.810BARREL LENGTH: 1.100TANG THICKNESS: 0.100MTG. HOLE DIA.: 0.410MTG. HOLE SPACING: 1.000 BRAND EQUIVALENT: Burndy YA1C2TC38Panduit LCC1-38D-E Penn Union BBLU-1D-2TC38 Thomas & Betts 256-30695-1161 MANUFACTURER: NSi IndustriesPART NUMBER: L1N-38UPC: 662381339102 We have the best selection and prices on connectors.
