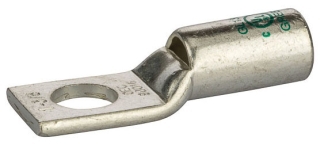

Copper Compression Connector, Peep Hole Copper Lug, GL Series, One Hole Nema, 3/8" Stud, 1-1/16" Strip Length, 0.47" ...
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Crescent Electric Supply Co | GL138 | 1 | 1 | ||
| Monarch Electric | 654051 | 1 | 1 | 1 @ $6.25 | |
| kirbyrisk.com | 2125606 | 1 | 1 | 1 @ $11.40 | |
 gordonelectricsupply.com | GL138 | 1 | NSI Orders Over $150 Usually Ship Next Day Otherwise 5-7 Days | 1 | 1 @ $5.81 |
 Lighting Supply | NSI-GL138 | 1 | 50 | 1 @ $298.50 | |
| Crescent Electric Supply Co | 2095886 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
1 Hole Short Barrel Copper Compression Lug with Peep Hole 1 AWG - 3/8" Bolt - 1 Count
Brand: NSI
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 1 AWG - 3/8" BoltShort Barrel Copper Compression Lugs with Peep Hole are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Listed for 35KV maximum when properly installed. AL9CU. Rated 600V, 90 degrees C. SPECIFICATIONS:QUANTITY: 1 CountRATED: 35KV MaxHOLES: 1WIRE RANGE: 1 AWGEXPANDED WIRE RANGE: 1-6 AWGCOLOR CODE: GreenBOLT SIZE: 3/8ID: 0.358OD: 0.469LENGTH: 1.835 WIDTH: 0.673END OF CONN. TO CTR.: 0.394TANG LENGTH: 0.811BARREL LENGTH: 0.827TANG THICKNESS: 0.106MTG. HOLE DIA.: 0.413 BRAND EQUIVALENT: Ilsco CRA-1-38Thomas & Betts 54148Burndy YA1C-L4BOXPenn Union BLU1S1Panduit LCAS1-38-E MANUFACTURER: NSi IndustriesPART NUMBER: GL138UPC: 662381036063 We have the best selection and prices on connectors.
Details
- Connectors
Listing
| Binding | Tools & Home Improvement |
|---|---|
| Product group | Home Improvement |
| Product type | HOME_LIGHTING_ACCESSORY |
| Model | GL138 |
| Part number | GL138 |
| Label | NSI |
| Manufacturer | NSI |
Analytics
| Case Qty | 1 units |
|---|---|
| Last Price | $26.37 |
Copper Compression Connector, Peep Hole Copper Lug, GL Series, One Hole Nema, 3/8" Stud, 1-1/16" Strip Length, 0.47" OD, 0.67" Width, 1.83" Length, 0.11" Thick, Green
Brand: NSI
Details
- Produced from high conductivity copper D tubing
- Tin-Plated to provide corrosion resistance
- Marked with die index and color coded
- Listed for 35 KV maximum when properly installed
- For applications greater than 2000 volts
Analytics
| Case Qty | 50 units |
|---|---|
| Last Price | $517.71 |
