Copper Compression Connector, Peep Hole Copper Lug, GL Series, One Hole Nema, 1/4" Stud, 15/16" Strip Length, 0.30" O...
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Crescent Electric Supply Co | GL614 | 1 | 1 | ||
| GL614 | 1 | Call for Availability | 1 | 1 @ $2.55 | |
| kirbyrisk.com | 2138470 | 1 | 1 | 1 @ $4.37 | |
 gordonelectricsupply.com | GL614 | 1 | NSI Orders Over $150 Usually Ship Next Day Otherwise 5-7 Days | 1 | 1 @ $2.23 |
 Lighting Supply | NSI-GL614 | 1 | 100 | 1 @ $228.00 | |
| Crescent Electric Supply Co | 2095889 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

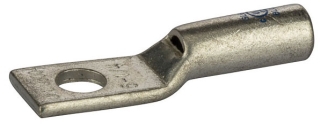

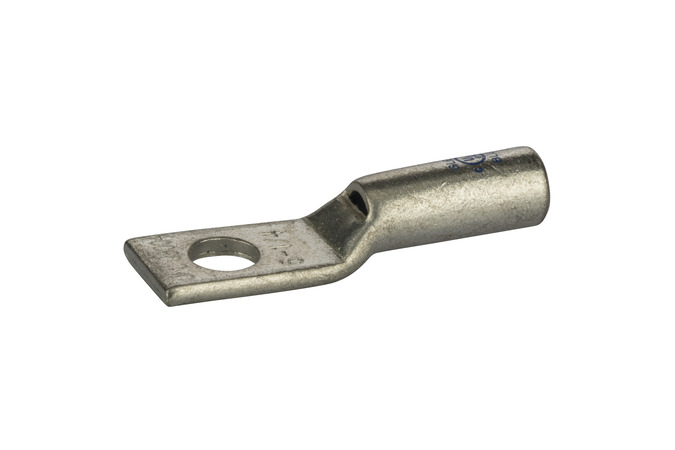

NSI GL614 Compression Lug 1 Hole 1/4 Inch Stud 6 AWG Blue
Brand: NSI
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 6 AWG - 1/4" BoltShort Barrel Copper Compression Lugs with Peep Hole are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Listed for 35KV maximum when properly installed. AL9CU. Rated 600V, 90 degrees C. SPECIFICATIONS:QUANTITY: 1 CountRATED: 35KV MaxHOLES: 1WIRE RANGE: 6 AWGEXPANDED WIRE RANGE: 6-8 AWGCOLOR CODE: BlueBOLT SIZE: 1/4ID: 0.205OD: 0.295LENGTH: 1.496 WIDTH: 0.421END OF CONN. TO CTR.: 0.295TANG LENGTH: 0.669BARREL LENGTH: 0.709TANG THICKNESS: 0.083MTG. HOLE DIA.: 0.252 BRAND EQUIVALENT: Burndy YA6CL-BOXIlsco CSWS-6-14Morris 94018Panduit LCAS6-14-LPenn Union BLU-6S1Thomas & Betts 54105 MANUFACTURER: NSi IndustriesPART NUMBER: GL614UPC: 662381036025 We have the best selection and prices on connectors.
Details
- Country of Origin: CHINA
- Brand: NSI
- Size: 3 x 1 x 2 inches
- Item Weight: 0.1 lb
Analytics
| Last Price | $19.99 |
|---|
NSI GL614 Series GL Compression Peep Hole Copper Lug, One Hole NEMA, 1/4" Stud, 15/16" Strip Length, 0.30" OD, 0.42" Width, 1.50" Length, 0.08" Thick, Blue
Brand: NSI
Details
- Produced from high conductivity copper D tubing
- Tin-Plated to provide corrosion resistance
- Marked with die index and color coded
- Listed for 35 KV maximum when properly installed
- For applications greater than 2000 volts
Analytics
| Case Qty | 100 units |
|---|---|
| Last Price | $401.45 |
