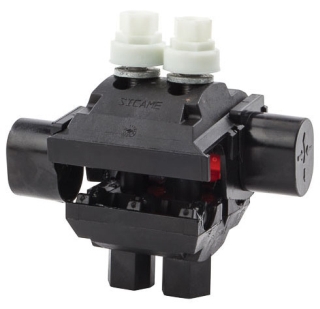

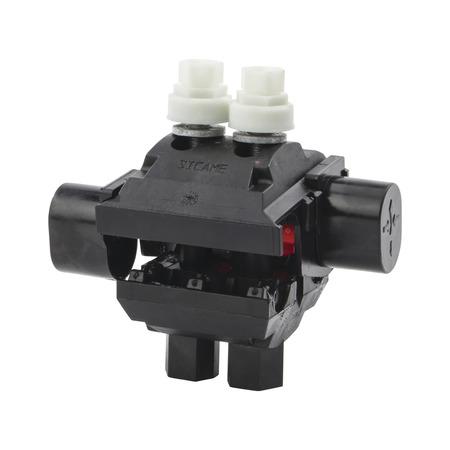

NSI . IPCS5040

Insulation Piercing Connector 500 MCM - 2/0 AWGSafe to use.No need to strip wire and totally insulated.No tape or cover needed.No contact at any point with a live part.Can be installed on energized conductors.Versatile and reliable.No spacer required connections.Exclusive "turbo spacer" keeps tab side open while main conductor is being tightened.No need for a third hand to install.Watertight and corrosion-free.Connection sealed by a rubber grommet.No migration of water.No contamination between main and tap.Connectors handle a large wire range of #14 AWG to 750 MCM. Double shear-head bolts ensure perfect connection every time hot spots eliminated. Can be used as a splice or a tap. Easy to install and no special tools required. For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications. Suitable for solid and/or stranded wires. 4 sizes are approved for use with bare wire (from 4/0 to #10)- these connectors come with a blue insert which re-creates the insulation and avoids any damage to the conductor. UL486B Listed. Meets ANSI C119.4 requirements. Rated 600V. Temperature rating 90 degrees C. SPECIFICATIONS:QUANTITY: 1 Count CONDUCTOR RANGE CURRENT RATING MAINTAPCU AMPAL AMP500 mcm - 2/0 awg4/0 - 4 awg405315HEIGHT: 4.5 inWIDTH: 3 inLENGTH: 3.9 inNO. OF BOLTS: 2 BRAND EQUIVALENT: Burndy BIPC500-4/0 Homac IPST 50040 Ideal BTC500-4 Ilsco IPC-500-250 Morris 96118 Penn Union IPC-500-4/0 MANUFACTURER: NSi IndustriesPART NUMBER: IPCS5040UPC: 662381082688We have the best selection and prices on connectors.
