NSI . IPCS7550

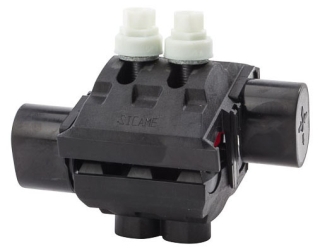

Insulation Piercing Connector 750 - 250 MCM Safe to use. No need to strip wire and totally insulated. No tape or cover needed. No contact at any point with a live part. Can be installed on energized conductors. Versatile and reliable. No spacer required connections. Exclusive "turbo spacer" keeps tab side open while main conductor is being tightened. No need for a third hand to install. Watertight and corrosion-free. Connection sealed by a rubber grommet. No migration of water. No contamination between main and tap. Connectors handle a large wire range of #14 AWG to 750 MCM. Double shear-head bolts ensure perfect connection every time hot spots eliminated. Can be used as a splice or a tap. Easy to install and no special tools required. For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications. Suitable for solid and/or stranded wires. 4 sizes are approved for use with bare wire (from 4/0 to #10)- these connectors come with a blue insert which re-creates the insulation and avoids any damage to the conductor. UL486B Listed. Meets ANSI C119.4 requirements. Rated 600V. Temperature rating 90 degrees C. SPECIFICATIONS: QUANTITY: 1 Count CONDUCTOR RANGE CURRENT RATING MAIN TAP CU AMP AL AMP 750 - 250 mcm 500 -250 mcm 700545 HEIGHT: 4.7 in WIDTH: 3.3 in LENGTH: 4.3 in NO. OF BOLTS: 2 BRAND EQUIVALENT: Homac IPST 750500 Ideal BTC750-250 Ilsco IPC-750-500 Morris 96122 Penn Union IPC-750-500 MANUFACTURER: NSi Industries PART NUMBER: IPCS7550 UPC: 662381082701 We have the best selection and prices on connectors.
