NSI . IPL500-8

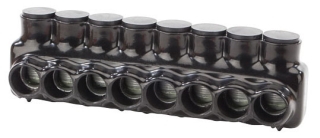

8 Wire Polaris 500 MCM - 4 AWG Insulated Multi-Cable ConnectorPolaris Insulated Multi-Cable Connectors have wire entry ports on one side only. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over the hex screws. Abrasion and chemical resistant. UV resistant. Will not support combustion. UL Listed UL486B Wire Connector. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire (see Polaris Grey Series). SPECIFICATIONS: QUANTITY: 1 Count COLOR: Black RATED: 600 Volts NO. OF PORTS: 8 WIRE ALIGNMENT: Same Side WIRE RANGE: 500 MCM - 4 AWG LENGTH: 9.69 in. HEIGHT: 2.94 in. WIDTH: 2.50 in. TORQUE VALUE (IN/LBS): 550 HEX SIZE: 5/16 BRAND EQUIVALENT: Blackburn AMTS50048 Homac CSB 500-8 S Ilsco PBTS-8-500 Morris 97568 Penn Union IPB-NA600-8S MANUFACTURER: NSi Industries PART NUMBER: IPL500-8 UPC: 662381915061 We have the best selection and prices on connectors.
