NSi . IPLD750-4

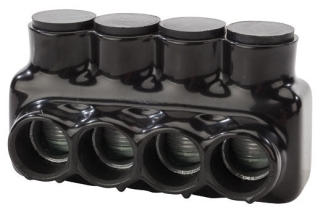

4 Wire Non-UL Polaris 750 - 250 MCM Insulated Multi-Cable Connector Block, Either Side Wire EntryPolaris Insul-Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. UV resistant. Will not support combustion. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C.Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.SPECIFICATIONS:QUANTITY: 1 CountRATED: 600 VoltsNO. OF PORTS: 4WIRE ALIGNMENT: Either SideWIRE RANGE: 750 - 250 MCMLENGTH: 6.38 in.WIDTH: 3.41 in.HEIGHT: 3.42 in.TORQUE VALUE (IN./LBS): 550HEX SIZE: 3/8 in.BRAND EQUIVALENT: Blackburn AMTD7502504 Burndy BIBD-750-4 Greaves USAD-750-4 Homac CSB-750-4 Ilsco PBTD-4-750 Morris 97674 Panduit PCSB750-4-2Y MANUFACTURER: NSi IndustriesPART NUMBER: IPLD750-4UPC: 662381926029 We have the best selection and prices on connectors.

NSI Polaris™ Insulated 4-Port multi-tap connector of hex size 3/8 Inch, is suitable for making wire termination. Connector in black color, has 6061-T6 aluminum alloy construction and high-dielectric strength plastisol insulation for added electrical protection. It measures 6.38 Inch x 3.41 Inch x 3.42 Inch. This 600-Volt connector supporting double side cable entry, accepts copper/aluminum cables of size 750 - 250 MCM. It has installation torque of 550 lb-Inch. Connector is accurately mold
