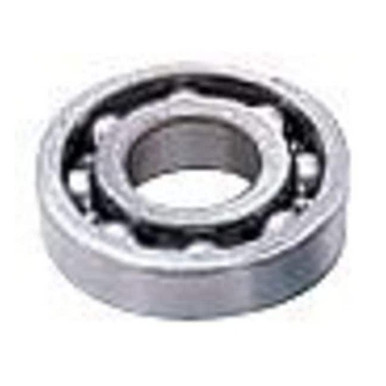

Radial Ball Bearing,Open,40mm Bore Dia
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G2969976 | 1 | 82 | 1 | 1 @ $30.09 |
 Grainger | 4ZXJ7 | 1 | 4 | 1 | 1 @ $42.95 |
| AE2YCD | 1 | 1 | 1 @ $86.25 | ||
 BDI Express | 1208320 | 1 | 50 | 1 | 1 @ $41.25 |
 simsupply.com | CU-345A584A37 | 1 | 55 | 1 | 1 @ $57.71 |
| NTNB 6308C3 BALL BRG | 1 | -2 | 1 | 1 @ $0.00 | |
| motionindustries.com | 00056809 | 1 | 1 | 1 @ $69.94 | |
| MRO Supply | 278847 | 1 | 1 | ||
| WWG4ZXJ7 | 1 | 1 | 1 @ $39.41 | ||
 simsupply.com | ZO-G2969976 | 1 | 47 | 1 | 1 @ $41.58 |
| 6308C3 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Radial Ball Bearing, Open, 40Mm Bore Dia
Brand: NTN
Conrad Ball Bearings
Details
- <b>Price For:</b> Each <b>Width</b>: 23mm <b>Static Load Capacity</b>: 5,400 lb. <b>Bore Dia.</b>: 40mm <b>Seal Material</b>: Synthetic Rubber Molded to a Steel Plate <b>ABEC Tolerance</b>: 1 <b>Cage Material</b>: Pressed Steel <b>Max. RPM</b>: 7,800 <b>Bearing Material</b>: Steel <b>Industry Number</b>: 3VX630 <b>Item</b>: Radial Ball Bearing <b>Outside Dia. Tolerance</b>: +0/-0.015mm <b>Single Row/Double Row</b>: Single Row
- <b>Temp. Range</b>: -13 Degrees to 250 Degrees F <b>Seal/Shield Type</b>: Open <b>Dynamic Load Capacity</b>: 9,150 lb. <b>Bore Tolerance</b>: +0/-0.012mm <b>Bearing Type</b>: Open <b>Outside Dia.</b>: 90mm <b>Country of Origin (subject to change)</b>: Japan
Listing
| Product group | BISS Basic |
|---|---|
| Product type | HARDWARE_BEARING |
| Model | 6308C3 |
| Part number | 6308C3 |
| Items per pack | 1 |
| Label | NTN |
| Manufacturer | NTN |
Catalog
| Feature | Japan |
|---|---|
| Category | Industrial & Scientific |
| MPN | 6308C3 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | NTN |
Analytics
| Offers | 7 |
|---|---|
| Case Qty | 1 units |
| Last Price | $37.7 |
NTN Bearing 6308C3 Single Row Deep Groove Radial Ball Bearing, C3 Clearance, Steel Cage, 40 mm Bore ID, 90 mm OD, 23 mm Width, Open
Brand: NTN Bearing
Catalog
| Feature | Deep groove geometry for high speeds |
|---|---|
| Category | Industrial & Scientific |
| MPN | 6308C3 |
| EAN | 4547359576450 |
| Product group | BISS |
| Product type | BEARINGS_AND_BUSHINGS |
| Manufacturer | NTN Bearing |
Analytics
| Offers | 8 |
|---|---|
| Case Qty | 1 units |
NTN 6308C3 MEDIUM SIZE BALL BRG(STANDARD) (Pack Of 5)
Brand: NTN Bearing
Specifications: Bearing Data Sheet Single Row Deep Groove Ball Bearings NTN Part Number 6308C3 Weight N/A (lbs) / N/A (kg) Dimensions Features/Options Dimension Imperial Metric Option Code Description Bore d O.D.D. Width B or W rs min D1 max a max b min ro max rns min D2 max f max da min da max Da max ras max Dx min Cy max Cz min rnas max 1.5748 (in) 3.5433 (in) 0.9055 (in) 0.0591 (in) 3.4169 (in) 0.1291 (in) 0.1063 (in) 0.0236 (in) 0.0197 (in) 3.7992 (in) 0.0969 (in) 1.8898 (in) 2.1260 (in) 3.2283 (in) 0.0591 (in) 3.8583 (in) 0.2126 (in) 0.0984 (in) 0.0197 (in) 40.000 (mm) 90.000 (mm) 23.000 (mm) 1.500 (mm) 86.790 (mm) 3.280 (mm) 2.700 (mm) 0.600 (mm) 0.500 (mm) 96.500 (mm) 2.460 (mm) 48.000 (mm) 54.000 (mm) 82.000 (mm) 1.500 (mm) 98.000 (mm) 5.400 (mm) 2.500 (mm) 0.500 (mm) Series Cage Internal Clr. 63 C3 Single Row Radial Ball Bearing 63 Series Pressed steel cage Radial clearance greater than normal Basic Load Ratings Limiting Speeds Static Dynamic 5,400 (LBF) 9,150 (LBF) 24,000 (N) 40,500 (N) Oil Seals Grease 9,200.00 (RPM) N/A 7,800.00 (RPM)
Details
- Best Quality
- Reasonable Price
- Easy To Use
Listing
| Binding | Misc. |
|---|---|
| Product group | Home Improvement |
| Product type | HARDWARE_BEARING |
| Part number | 6308C3 |
| Label | NTN Bearing |
| Manufacturer | NTN Bearing |
Analytics
| Offers | 2 |
|---|---|
| Case Qty | 5 units |
