NATV10LL MACHINED RINGNRB(CROSS ROLLER)

THIS LISTING IS FOR 1 PIECE: NATV10LL NTN YOKE TYPE TRACK NRB W/ IR - DOUBLE SEALED ; CROWNED ROLLER; 10 MM ID X 30 MM OD X 15 MM W - FACTORY NEW

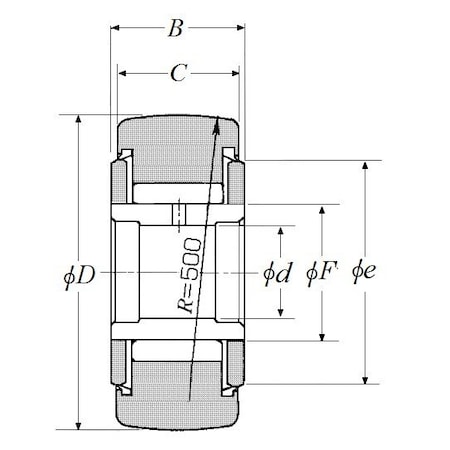

Technical Specifications: Type Yoke Type Track Roller Roller Type Needle Bearing Type Needle Roller Bearing Material High Carbon Chrome Steel Cage Material None Outside Ring Type Spherical Limiting Speed - Oil 8500 RPM Limiting Speed - Grease 6500 RPM Enclosure Double Sealed Static Load Rating 91 lbf / 20300 N / 20.30 kN Dynamic Load Rating 270 lbf / 12000 N / 12.00 kN Load Rating of Track 590 lbf / 2620 N / Weight 0.143 lb / 0.065 kg Operating Temperature Range -40 to 250 §F / -40 to 120 §C Dimensional Specifications: d 0.3937 in / 10.000 mm D (0/-0.050) 1.1811 in / 30.000 mm F 0.5906 in / 15.000 mm e 0.9055 in / 23.000 mm C 0.5512 in / 14.000 mm B 0.5906 in / 15.000 mm B Tolerance 0/-0.180 mm
