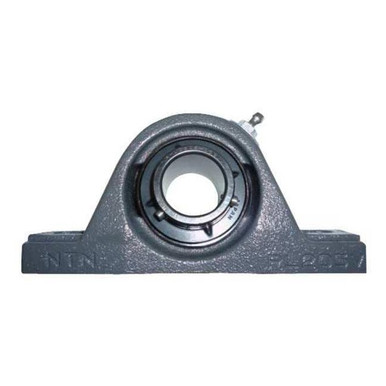

NTN . UCPL-1/2M

<p> Mounted Ball Bearings</br> Temp. range: -20 to 250F</br>Feature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.</p><p><b>Specification: </b><ul><li>Item: Pillow Block Bearing</li><li>Mounted Bearing Item: Pillow Block Bearing</li><li>Bearing Insert Type: Ball</li><li>Bore Dia.: 1/2"</li><li>Bolt Hole Center-to-Center: 3-5/8"</li><li>Mounting Surface to Shaft Center: 1-1/16"</li><li>Bearing Housing Material Type: Cast Iron</li><li>Shaft Locking Type: Set Screw</li><li>Bearing Insert Material: 52100 Chrome Steel</li><li>Series: Standard Duty</li><li>Number of Bolts: 2</li><li>Bolt Size: 3/8"</li><li>Overall Height: 2-1/8"</li><li>Overall Width: 1-3/8"</li><li>Overall Length: 4-3/4"</li><li>Bearing Lubrication: Shell Alvania #3 or NLGI #3 Equivalent</li><li>Dynamic Load Capacity: 2160 lb.</li><li>Static Load Capacity: 1030 lb.</li><li>Temp. Range: -20 Degrees to 250 Degrees F</li><li>Finish: Painted</li></ul></p>

' Pillow Block Bearing, Number of Bolts 2, Standard Duty Series, Bore Dia. 1/2 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 3-5/8 In., Mounting Surface to Shaft Center 1-1/16 In., Overall Height 2-1/8 In., Overall Width 1-3/8 In., Overall Length 4-3/4 In., Bolt Hole Size 3/8 In., Ball Bearing Insert, Dynamic Load Capacity 2160 lb., Static Load Capacity 1, 030 lb., Temp. Range -20 Degrees to 250 Degrees F '
