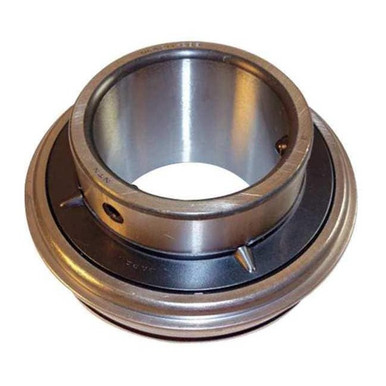

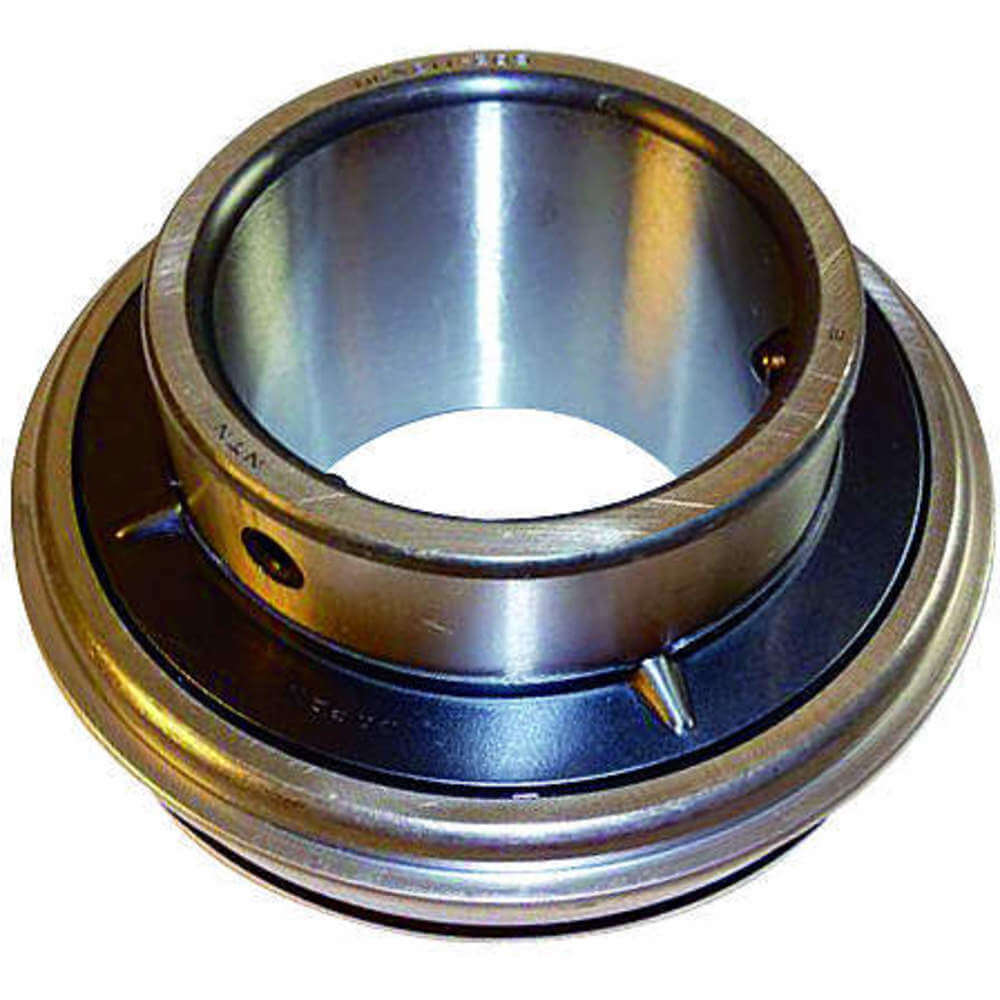

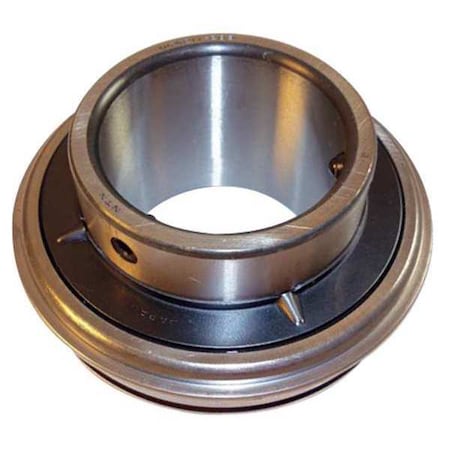

Insert Bearing, Ball Material Alloy Steel, Bearing Industry Number UCS204-012LD1NR, Bearing Insert Type Radial/Deep Groove Ball, Bearing Insert Shape Cylindrical, Bore Diameter 3/4 in, Closure Double Sealed, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Outer Ring Width 0.669 in, Outside Diameter 1 27/32 in, Plain Bearing Material Steel, Ring Material Alloy Steel, Rolling Element Material Alloy Steel, Rolling Element Rows 1, Seal Type Contact, Shaft Locking Type Set Screws

' Insert Ball Bearing, Bore Dia. 3/4 In., Inside Dia. 3/4 In., Width 31.0mm, Dynamic Load Capacity 2890 Lb., Locking Setscrew, Bearing Material Steel '

Technical Specifications: Type Insert Bearing Bore Type Round Bearing Type Ball Bearing Material Through Hardened Steel Ball Material Steel Seal Type Contact Seal Material Nitrile Rubber Performance Standard Duty Locking Device 2 -120ø Set Screw Lubrication Relubricatable Radial Internal Clearance CN Static Load Rating 1500 lbf / 6650 N / 6.65 kN Dynamic Load Rating 2880 lbf / 12800 N / 12.80 kN Enclosure Double Sealed Weight 0.397 lb / 0.180 kg Operating Temperature Range -40 to 250 §F / -40 to 120 §C Dimensional Specifications: d 0.7500 in / 19.050 mm D 1.8504 in / 47.000 mm C 0.6693 in / 17.000 mm B 1.2205 in / 31.000 mm r 0.0394 in / 1.000 mm r1 0.0236 in / 0.600 mm ds 10-32 UNF G 0.1772 in / 4.500 mm d4 1.1654 in / 29.600 mm S1 0.7205 in / 18.300 mm S 0.5000 in / 12.700 mm a 0.1220 in / 3.100 mm f 0.0591 in / 1.500 mm D1 1.7559 in / 44.600 mm D2 2.0748 in / 52.700 mm
