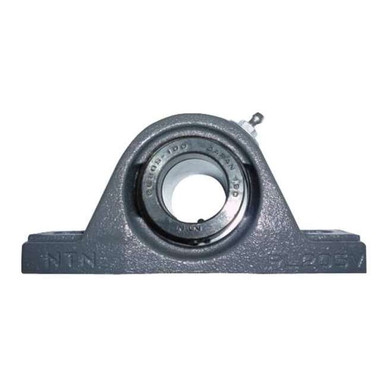

Pillow Block Bearing,Ball,1-7/8" Bore

THIS LISTING IS FOR 1 PIECE: UELPL-1.7/8 NTN MOUNTED UNIT (CAST IRON) - FACTORY NEW

Mounted Ball Bearings Temp. range: -20° to 250°F Feature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection. This listing is for each. Technical Specification Item Pillow Block Bearing Mounted Bearing Item Pillow Block Bearing Bearing Insert Type Ball Bore Dia. 1 7/8 in Bolt Hole Center-to-Center 6 7/32 in Mounting Surface to Shaft Center 2 3/16 in Bearing Housing Material Type Cast Iron Shaft Locking Type Eccentric Locking Collar Bearing Insert Material 52100 Chrome Steel Series Standard Duty Number of Bolts 2 Bolt Size 5/8 in Overall Height 4 13/32 in Overall Width 2 3/8 in Overall Length 8 1/8 in Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent Dynamic Load Capacity 7, 900 lb Static Load Capacity 5, 200 lb Temp. Range -20 Degrees to 250 Degrees F Finish Painted
