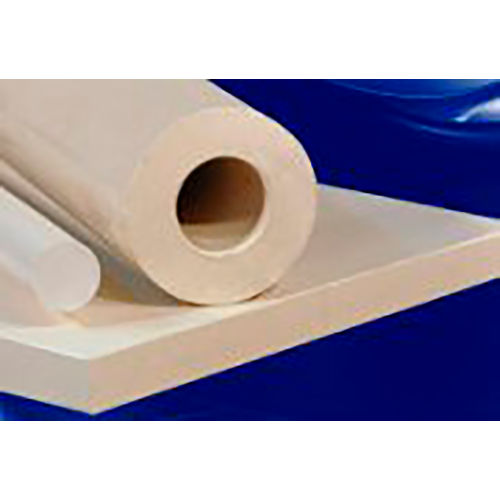

Fluorosint? 500 has nine times greater resistance to deformation under load than unfilled PTFE. Its coefficient of linear thermal expansion approaches the expansion rate of aluminum, and is 1/5 that of PTFE ? often eliminating fit and clearance problems. It is 1/3 harder than PTFE, has better wear characteristics and maintains low frictional properties. Fluorosint? 500 is also non-abrasive to most mating materials. Sizes in drop-down menus are in INCHES Applications: Bearings - Seals - Mixers - Pumps - Appliances - Valve seats Fluorosint is Now Available in 5 Grades: Fluorosint? 500 - Exceptional Dimensional Stability for Precise Tolerance Control Fluorosint? 207 - Lowest Coefficient of Friction of all Fluorosint Grades Fluorosint? HPV - Most Wear Resistant Fluorosint Grade - Outlasts Low-tech PTFE Based Materials Fluorosint? 135 - Superior Performance Grade For Stability In Extreme Conditions Fluorosint? MT-01 - Ultra-High Performance Fluorosint Grade For Stability at Elevated Temperature

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerProfessional Plastics
CategoryId, CategoryIdL37515
CategoryIdL133
CategoryIdL210483
CategoryL1Plumbing
CategoryL2Pipes, Valves & Fittings
CategoryL3Tubing
CategoryL4PTFE Tubing
DimensionUnitinch
UPCNone
Weight3
WeightUnitlbs
Weight_AttribWeight
height, width, Height, Width, CoLT Expansion (x 10-5 in /in /Deg:F)2.5
height_AttribHeight
jsonUrlData924526ffbdad25e5923b
length12.0
length_AttribLength
moq, multiple, tierMinQty1, Package Quantity1
MPNTFLS5001.750X2.500X12.000
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG000931721
tierPrice1293.99
urlhttps://www.zoro.com/professional-plastics-fluorosint-500-tube-1750-id-x-2500-od-x-12000-ft-tfls5001750x2500x12000/i/G000931721/
width_AttribWidth
Length12
MaterialFluorosint
UL94 Flammability Rating Method: UL 94V-0
Specific Gravity (73 Deg: g/cm3)2.32
Heat Deflection Temp (264 psi) Deg:F270
Thermal Conductivity (BTU-in/ft²-hr-°F)5.3
Flexural Strength (psi @ 73 Deg: F)2200
Tensile Elongation at Break (% @ 73 Deg: F)10
Tensile Strength (psi @ 73 Deg;)1100
Max Recommended Use Temp (Deg:F)500
Dielectric Strength (volts/mil)275

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG000931721111 @ $293.99
National Supply NetworkB30580571-211 @ $302.98
Global IndustrialWBB30580571Usually ships in 5 to 8 days11 @ $309.95
