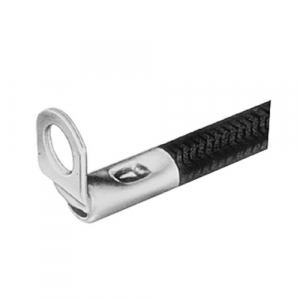

Order YAV1CRS by Burndy Heavy Duty Compression Right Angle Terminal, (Pack of 100 pcs) - US Mega Store

Burndy . YAV1CRS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAV1CRS
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAV1CRS by Burndy Heavy Duty Compression Right Angle Terminal, (Pack of 100 pcs) - US Mega Store
diameter, height, length0.53
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYAV1CRS
qtyInStockContact Us
snippet<p><strong>Burndy, YAV1CRS, Heavy Duty Compression Right Angle Terminal, 1 Hole, 3/8" Stud, </strong> </p>
tierPrice19.74
width0.73
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index42
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Tongue TypeRing
PlatedY
Plating TypeTin
TypeRing Tongue
Dimension - B Length inch0.62 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - D inch0.67 in
Dimension - G inch1.44 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm33 mm
Dimension - Length Overall inch1.31 in
Dimension - N inch0.33 in
Dimension - Outside Diameter inch0.53 in
Dimension - Pad Width inch0.73 in
Dimension - Strip Length inch5/8
Dimension - Stud Size inch3/8 in
Dimension - Z inch0.34 in
Physical Attribute - Tongue Angle90 Degree
Conductor - Copper Str Aircraft SizeAN 1
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAV1CRS1Contact Us11 @ $9.74
