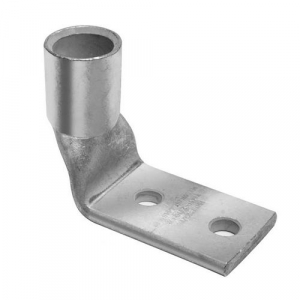

Order YAZ252NTC3890 by Burndy 25019332 2 Hole, Cu Terminal, (Pack of 50 pcs) - US Mega Store

Burndy . YAZ252NTC3890

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZ252NTC3890
ConditionNEW
Extra Product NameOrder YAZ252NTC3890 by Burndy 25019332 2 Hole, Cu Terminal, (Pack of 50 pcs) - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUYAZ252NTC3890
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Burndy, YAZ252NTC3890, 25019332 2 Hole, Cu Terminal </strong> </p>
tierPrice126.2
Color CodePink
Connector TypeTerminal
Die Index12;348
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
PlatedY
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length inch1.38
Dimension - Bolt Size fraction3/8
Dimension - E Spacing between Holes fraction1-3/4
Dimension - Height inch1.96
Dimension - Hole Size inch0.4
Dimension - Hole Size mm10
Dimension - L Length Overall mm75
Dimension - Length Overall inch2.95
Dimension - N inch0.41
Dimension - Outside Diameter inch0.51
Dimension - Pad Width inch0.75
Dimension - Strip Length inch1-7/16
Dimension - Z inch0.43 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size100 Navy
Conductor - Copper Str Size1/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZ252NTC38901-211 @ $26.20
