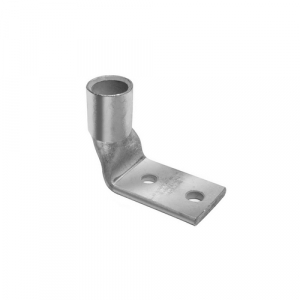

Order YAZ322TC3890 by Burndy 25019366 Cu Terminal, 2 Hole, (Pack of 10 pcs) - US Mega Store

Burndy . YAZ322TC3890

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YAZ322TC3890
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YAZ322TC3890 by Burndy 25019366 Cu Terminal, 2 Hole, (Pack of 10 pcs) - US Mega Store
diameter, length0.95
height3.12
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYAZ322TC3890
qtyInStockContact Us
snippet<p><strong>Burndy, YAZ322TC3890, 25019366 Cu Terminal, 2 Hole </strong> </p>
tierPrice153.41
width1.4
width_AttribDimension - Pad Width inch
Color CodeBlue
Connector TypeTerminal
Die Index19;470
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
Physical Attribute - Tongue TypeStandard
PlatedYES
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
Dimension - B Length inch2.12 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction, Dimension - Thread Size3/8
Dimension - Height inch3.12 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm62 mm
Dimension - Length Overall inch2.46 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.95 in
Dimension - Pad Width inch1.40 in
Dimension - Strip Length inch2-3/16
Dimension - Z inch0.43 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size400 (127) Navy
Conductor - Copper Str Size400 kcmil
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYAZ322TC38901Contact Us11 @ $53.41
