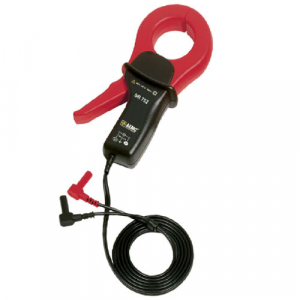

AEMC SR704 1mA-1200A AC Current Probe with Leads 2116.30. ✅AEMC authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

AEMC . 2116.30

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAEMC
Weight1.21
WeightUnitlbs
Weight_AttribWeight
moq, multiple, tierMinQty11
MPN, SKU2116.30
qtyInStock0
snippetAEMC SR704 1mA-1200A AC Current Probe with Leads 2116.30. ✅AEMC authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
tierPrice1323.00
Maximum Conductor Size2.05" (52mm)
Current Range1000Arms AC
Measurement Range1 to 1200A
Output5 ft (1.5m) lead with safety 4mm banana plug
Transformation Ratio1000:1
Output Signal1mA/A AC (1A @ 1000A)
Accuracy 50/60Hz0.3% @ 1000A
Frequency Range1Hz to 100KHz With current derating
Phase Shift at 50Hz0.7° @ 1000A
Open Secondary VoltageLimited to <25V
Load Impedance5&Omega; max
Overload1200A for 40 mn ON then 20 mn OFF
Dimensions (H x W x D)4.37 x 8.50 x 1.77&rdquo; (111 x 216 x 45mm)
Operating Temperature14&deg; to +122&deg;F (-10&deg; to +50&deg;C)
Storage Temperature-4&deg; to +158&deg;F (-20&deg; to +70&deg;C)
Operating Humidity90% RH
Pollution Degree2
Ingress Protection (IP)IP40
EMCEN 61326-1
Safety ComplianceEN/IEC 61010-1 600V CAT III,EN/IEC 61010-032

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Megadepot2116.30111 @ $323.00
TranscatSR7041This item is no longer available. Please contact11 @ $299.73
usmegastore.com2116.301-211 @ $337.25
Galco2116.30-AEMC111 @ $359.15
