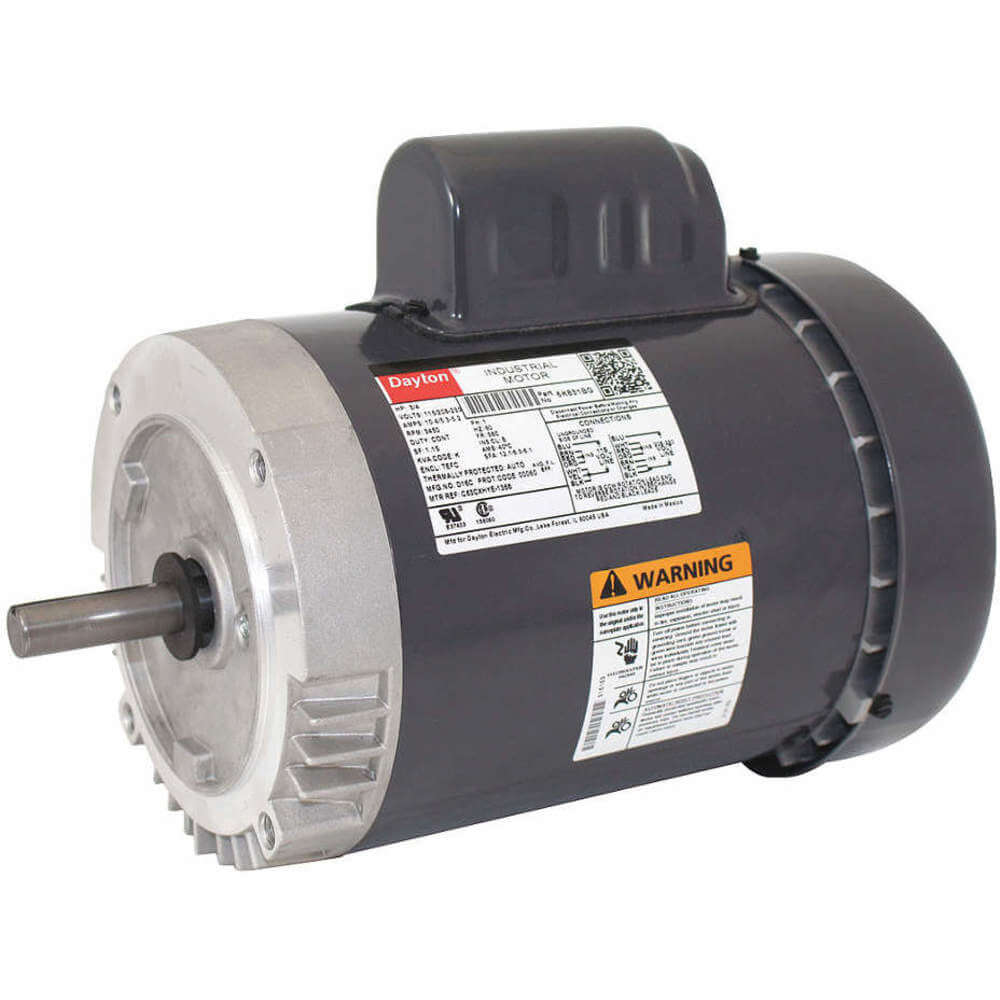

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2, 56C Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Shaft Design Keyed

Suitable for use in dusty, dirty, nonhazardous environments, this motor can be used with speed reducers, pumps, blowers, conveyors, and other equipment that mounts directly to a NEMA C-face motor.<br /><br /> Item: General Purpose Motor<br /> Motor Application: General Application<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Totally Enclosed Fan-Cooled<br /> HP: 3/4<br /> Nameplate RPM: 3450<br /> Frame: 56C<br /> Voltage: 115/208-230<br /> Hz: 60<br /> Phase: 1<br /> Full Load Amps: 10.4/5.3-5.2<br /> No. of Speeds: 1<br /> Motor Mounting Type: Face<br /> Motor Mounting Position: All Angle<br /> Motor Thermal Protection: Auto<br /> Ins. Class: B<br /> Motor Service Factor: 1.15<br /> Motor Bearings: Ball<br /> Motor Frame Material: Steel<br /> Max. Ambient Temp.: 40 Degrees C<br /> Motor Shaft Rotation: CW/CCW<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 1-7/8"<br /> Length Less Shaft: 10-1/16"<br /> Overall Length: 11-15/16"<br /> Motor Shaft Design: Keyed<br /> RPM Range: 3001-3600<br /> Standards: UL Recognized (E37403), CSA Certified (258501)<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 67.8%<br /> Includes: Shaft Key<br /> Manufacturers Warranty Length: 1 yr.<br /> RPM Group: 3001-3600
