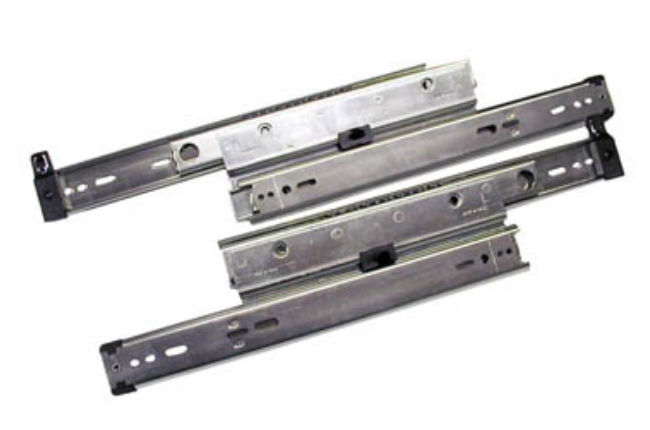

Knape & Vogt Kv8505 P18 18 In. Full Extension 150 Lb. File Drawer Slides With Overtravel - Zinc

Knape and Vogt, KV8505 P18, Drawer Slides, 8505, Cabinet Hardware, Drawer Slide, 18 Inch File Drawer Slides from the 8505 Series The 8505 Series precision ball-bearing full extension drawer slides are known for their smooth operation and dependable functionality. They come in a set of 2 with the necessary mounting hardware so you have everything needed for the progressive cabinet drawer upgrade you've been longing for. Features: 150 Pound Load rating 1-1/2 Overtravel Enables Drawer to Open Beyond Cabinetry Top Traditional Side Mount Installation Bounce Back Prevented by Hold-In Feature Traditional 32mm Hole Pattern Factory Attached Drawer Release Clips with Non-Handed Quick Disconnect For Residential or Commercial Use Limited Lifetime Warranty With its progressive movement ball bearing sliding action that's rated for drawer capacities of up to 150 pounds, this 18 inch file drawer slide has the added feature of 1-1/2 inches of overtravel which makes that stubborn file in the back of your drawer more accessible than ever. Lastly, this set of slides is easy to install as it is non-handed with a standard 32mm hole pattern, and allows for easy drawer removal with a quick disconnect feature. Specifications: Sold as a Set (Set is for One Complete Drawer) Screws Included Height 3-51/64 (Including Quick Disconnect Rail) Length: 18 Clearance: 1/2, Plus 1/32, Minus 0 Each Side Material: Electro Zinc-Plated and Lacquered Cold Rolled SteelSimilar and Related Products: KV8450FM B18 Full Extension Slides KV8455FM B22 Overtravel Slides KV8505 P20 Heavy Duty Full Extension Slides KV8900 B18 Extra Heavy Duty Full Extension Slides
