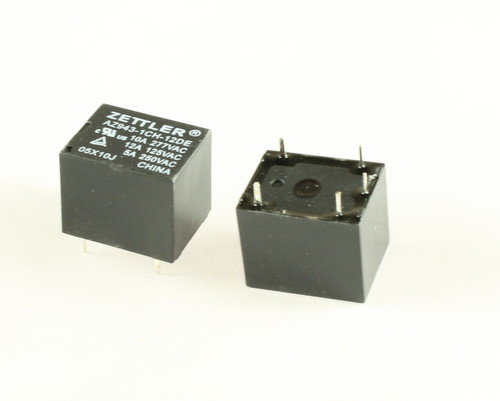

ZETTLER AZ943-1CH-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 15A; 10A/277VAC; PCB
ZETTLER AZ943-1CH-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 15A; 10A/277VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ943-1CH-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 15A; 10A/277VAC; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | d32861cfe673859600ed61c5a7e675ca. |
| jsonUrlData2 | e7e229e203279ed91cce |
| keywords | ZETTLER, AZ943-1CH-12DE, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ943-1CH-12DE |
| qtyInStock | 5586 |
| snippet | ZETTLER AZ943-1CH-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 15A; 10A/277VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4 | 100 |
| tierPrice1 | 0.612 |
| tierPrice2 | 0.602 |
| tierPrice3 | 0.591 |
| tierPrice4 | 0.549 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max | 15A |
| AC contacts rating @R | 10A / 277V AC |
| DC contacts rating @R | 7A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Operate time | 10ms |
| Body dimensions | 19x15.3x15.7mm |
| Release time | 5ms |
| Coil power consumption | 203mW |
| IP rating | IP64 |
| Operating temperature | -40...90?C |
| Relay series | AZ943 |
| Contact resistance | 100m? |
| Contact material | AgSnO |
| Terminal pitch | 2mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TME | AZ943-1CH-12DE | 1 | 5586 | 1 | 1 @ $0.61, 5 @ $0.60, 10 @ $0.59, 100 @ $0.55 |
| 2034000222 | 10 | -2 | 10 | 10 @ $1.00 |
