Where can I buy TCA0453AE211GAA009?

TCA0453AE211GAA009 is available from Zoro, Dealers Electric, motorsandcontrol.com, Grainger, Platt.com. See pricing comparison above.

What is the price of TCA0453AE211GAA009?

Pricing ranges from $7799.42 to $8951.59 depending on quantity and distributor.

Is TCA0453AE211GAA009 in stock?

Yes, TCA0453AE211GAA009 is currently in stock at multiple distributors with immediate availability.

Marathon Motors

Name: Marathon Motors
Brand: Marathon Motors
Price: 7799.42 USD
Availability: OutOfStock

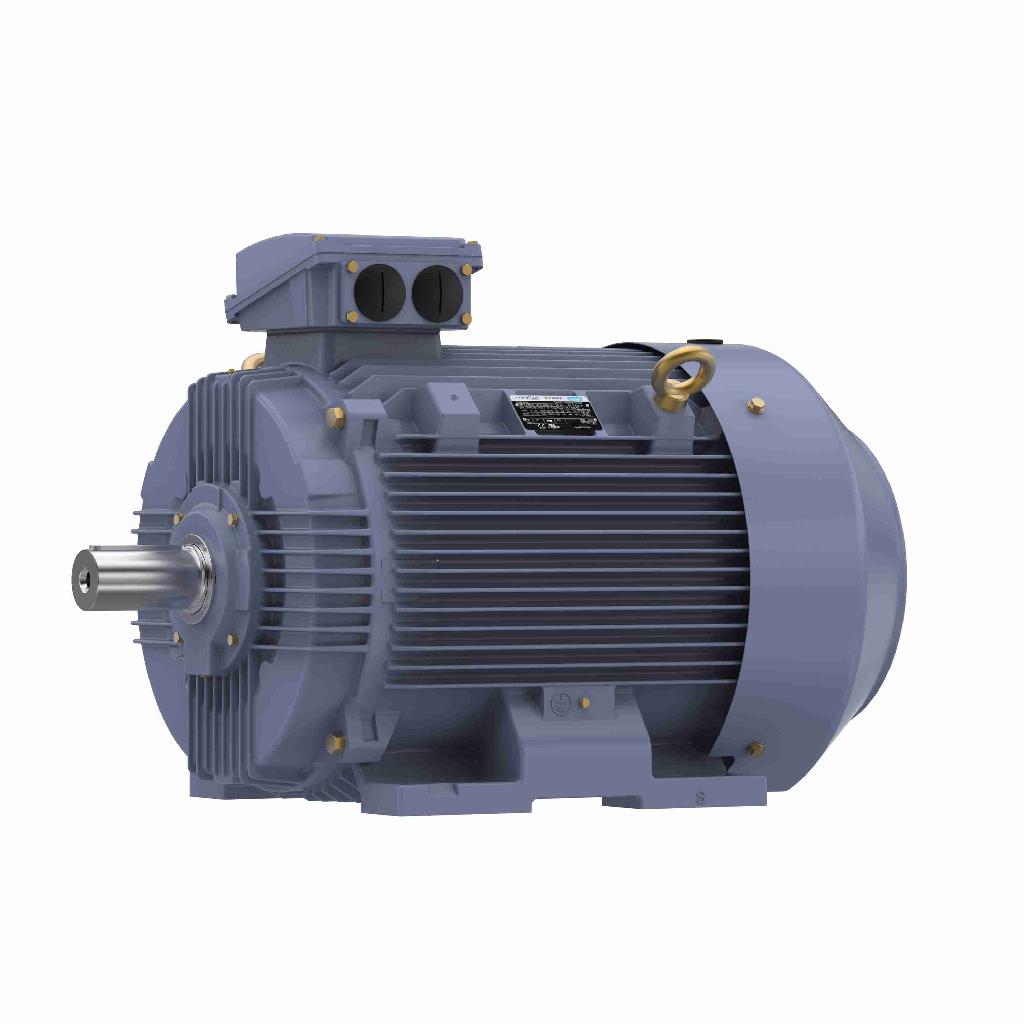

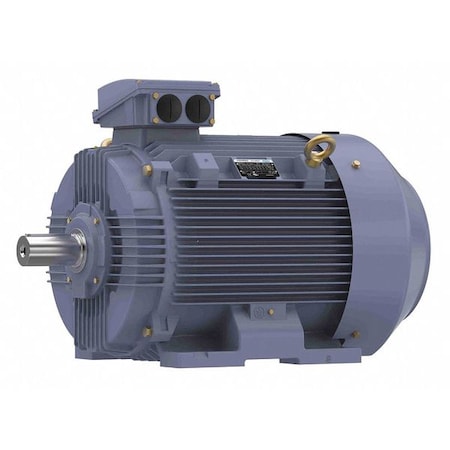

Marathon R502A (TCA0453AE211GAA009), 60HP, 1190 RPM, 3PH, 60,50 HZ, 230V/460V, 280S Frame, Standard Flange, Footed, TEFC, IEC Metric Motor

Marathon Motors . TCA0453AE211GAA009

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name	Marathon Motors
DimensionUnit	inch
GraingerSku	55AZ19
UnitOfMeasure	EA
Voltage, Voltage @ 50Hz	230/460V AC
Weight	1406.6
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	IN
extendedLead	25
extendedQty	-2
height	37.4
jsonUrlData	924526ffbdad25e5923b
length	50.78
moq, multiple, tierMinQty1, No of Speeds	1
MPN	TCA0453AE211GAA009
perItemShipping	650.00
qtyInStock	0
qtyInStockOverride	Drop Ship
SKU	G8662130
tierPrice1	7799.42
url	https://www.zoro.com/marathon-motors-gp-motor-60-hp-1-190-rpm-230460v-280s-tca0453ae211gaa009/i/G8662130/
width	28.74
Item	General Purpose Motor
Motor Design	3-Phase
HP, HP @ 50Hz	60
RPM Range	1,101-1,200
Frame	280S
Motor Thermal Protection	None
Motor Enclosure Design	Totally Enclosed Fan-Cooled
Motor Mounting Type	Rigid Base
Full Load Amps, Full Load Amps @ 50Hz	146.0/73.0
Manufacturers Warranty Length	1 yr
Shaft Length	140 mm
Hz	60/50
Phase	Three
Shaft Dia	75 mm
CC Number	CC003A
kW	45.0
Motor Shaft Rotation	CW/CCW
Motor Frame Material	Cast Iron
Nominal Efficiency	94.5 %
Max Ambient Temp	40 Degrees C
Motor Bearings	Ball
Duty, Duty Cycle	Continuous
Ins Class	F
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application	General Application
Standards	CE, UL Recognized
Motor Service Factor, Service Factor @ 50Hz	1.15
Nameplate RPM, RPM @ 50Hz	1,190
Usable @ 208V, Usable @ 200V	No
Inverter Rated	Yes
Overall Length	1,060 mm
Motor Mounting Position	Horizontal
NEMA Design	N
Length Less Shaft	920 mm
Country of Origin (subject to change)	India

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G8662130	1		1	1 @ $7799.42
Dealers Electric	TCA0453AE211GAA009	1	3	1	1 @ $8951.59
motorsandcontrol.com	R502A	1		1	1 @ $0.00
Grainger	55AZ19	1		1
Platt.com	2105049	1		1
Galco	TCA0453AE211GAA009-MARA	1		1	1 @ $7991.95
