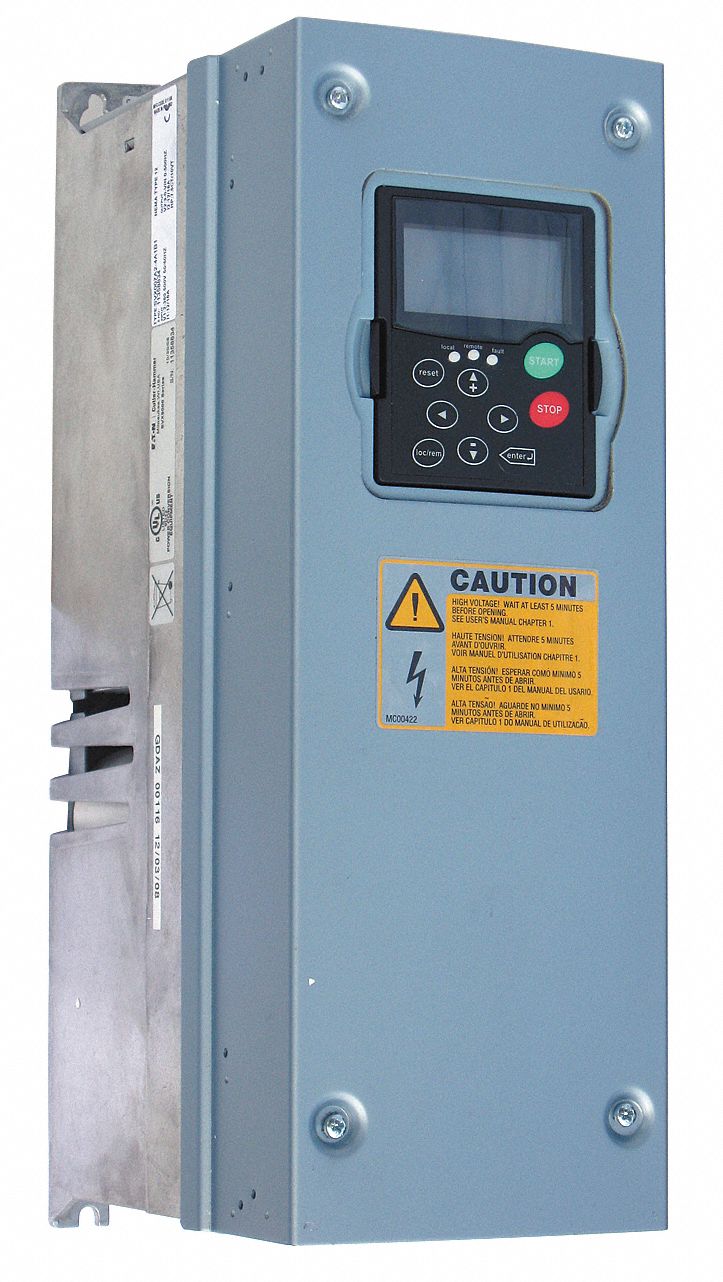

Variable Frequency Drive, 5 HP, 208-240V

HVX005A2-2A1B1 - EATON CUTLER-HAMMER HVX9000 5HP 208/230V NEMA12 HOA Keypad HVX005A22A1B1

Eaton . HVX005A2-2A1B1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerEaton
DimensionUnitinch
GraingerSku4LRT4
Extra Product NameVariable Frequency Drive, 5 HP, 208-240V
Voltage, Input Voltage, Output Voltage240V AC
WeightUnitlbs
countryOfOrigin, Country of Origin (subject to change)Finland
depth, length8.4
extendedLead10
extendedQty-2
height16.5
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty1, Torque @ 1 Hz1
MPNHVX005A2-2A1B1
qtyInStock0
SKUG2552164
tierPrice11484.99
urlhttps://www.zoro.com/eaton-variable-frequency-drive-5-hp-208-240v-hvx005a2-2a1b1/i/G2552164/
width5.6
width_AttribWidth
Input Frequency50/60 Hz
Max Output Amps, Maximum Output Current17.5 A
Depth8.4 in
For Use With3-Phase Inverter Duty Motor
Output Phase AC, Input Phase ACThree
EnclosureOpen
Control MethodFrequency Control (V/f) Open Loop Sensor less
Key Pad Lockout, Digital ReadoutYes
Control TypeKeypad
DisplaysLCD Keypad
Output Frequency Range0 to 320 Hz
StandardsUL
ItemVariable Frequency Drive
With Bypass / No BypassNo Bypass
Adjustable Deceleration Time, Adjustable Acceleration Time0 to 3000 sec
Starting Torque2
ProtectionEarth Fault, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Under load, Over temperature, Overcurrent, Overvoltage, Under voltage
Display TypeLCD
Max HP, Maximum Output Power5 hp
Dynamic BrakingInternal Brake Chopper Circuit
Width5.6 in
Accepts Input Control Signal0-10V DC, 4-20mA
Start/Stop ControlProgrammable
With Line Contactor / No Line ContactorNo Line Contactor
Height16.5 in
Enclosure RatingNEMA 12
Overall Depth8 2/5 in
Overall Width5 3/5 in
Overall Height16 1/2 in

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2552164111 @ $1484.99
Grainger4LRT4111 @ $1650.00
GalcoHVX005A2-2A1B111
York SupplyHVX005A2-2A1B111
Walker IndustrialHVX005A2-2A1B11-211 @ $6111.80
Platt.com1002668111 @ $6417.38
motorsandcontrol.comHVX005A2-2A1B1111 @ $7130.43
kempstoncontrols.co.ukHVX005A2-2A1B1111 @ $14593.28
Allied Electronics7282297111
turtle.comCUH HVX005A2-2A1B11-211 @ $8021.42
cappusa.com4887826111 @ $0.00
us.rs-online.com72822971111 @ $7002.25
