Dwyer Instruments

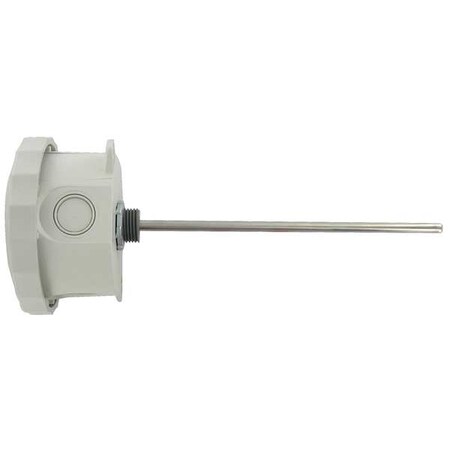

Dwyer I2-4 Immersion Temperature Sensor I2-42062. ✅Dwyer authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDwyer Instruments
DimensionUnitinch
UnitOfMeasureEA
Weight0.4
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height3
length9
moq, multiple, tierMinQty11
MPNI2-42062
qtyInStock0
SKUG5744514
tierPrice161.45
urlhttps://www.zoro.com/dwyer-instruments-immersion-probe-rtd-pt-1000-ohm-6-in-l-i2-42062/i/G5744514/
width12
ItemImmersion Temperature Probe
Primary Measuring Element, Sensor TypeRTD
Probe Temp Measuring Element1000 Ohm RTD
Temp Range (F)-32 Degrees to 240 Degrees
Probe Contact Material, Probe Material, Probe Sheath Material304 Stainless Steel
Probe Wire Length5 ft
Probe Length6 in
IncludesHousing
Accuracy+/-0.6% at 32 Degrees F
Manufacturers Warranty Length, Manufacturer Warranty Length1 yr
Process Connection, Process MountingCompression Fitting
Probe Dia1/4 in
Wire Length5 ft.
Temp Range (C)-35.5 Degrees to 115.5 Degrees
Temperature Measuring ElementRTD, Pt 1000 Ohm
UseAir or Liquids
Number of Wires2-Wire
For ApplicationAir, Gases, Liquids and Gels
For Liquids and Gels, For Air, For GasesYes
Minimum Temperature C, Minimum Temperature ?C-35.5 Degrees C
Resistance1,000 ohm
For Solids, Includes Thermowell, Includes Signal Converter, For SurfacesNo
RTD Type2-Wire 1,000 ohm
Minimum Temperature F, Minimum Temperature ?F-32 Degrees F
Cable Length8 in
Opening/Diameter, Probe Diameter0.25 in
Maximum Temperature C, Maximum Temperature ?C115.5 Degrees C
Fitting Type1/4 in NPT Compression
Maximum Temperature F, Maximum Temperature ?F240 Degrees F
Probe Size1/4 in x 6 in
Temperature Range-32 Degrees to 240 Degrees F/-35.5 Degrees to 115.5 Degrees C
Head Connection1 1/2 in NPT Condit Knock Out
Probe BendStraight
Head MaterialPlastic
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG5744514111 @ $61.45
Grainger6CUG611
RadwellI2-42062111 @ $60.00
MegadepotI2-4206211
TranscatI2-42062111 @ $40.75
Raptor SuppliesAE8FBW11
Allied Electronics7207642811
sustainablesupply.comC17182411-211 @ $74.63
PemroDWI-618611
heavydutydepot.comI2-42062211 @ $53.61
usmegastore.comI2-420621Contact Us11 @ $53.64
us.rs-online.com72076428111 @ $476.45, 3 @ $462.84
