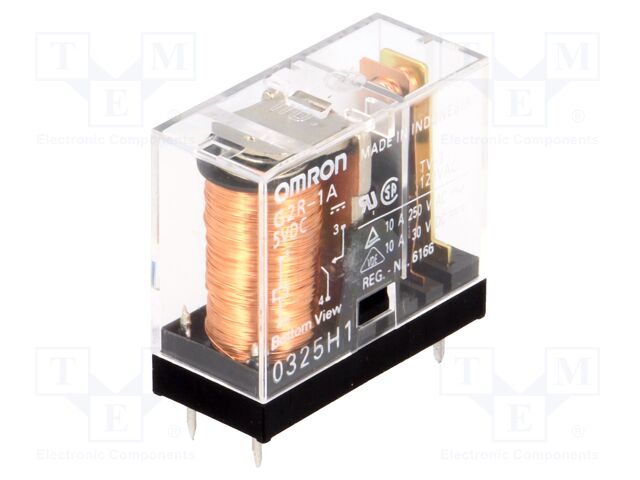

OMRON OCB G2R-1A 5VDC | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10A
OMRON OCB G2R-1A 5VDC | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-1A 5VDC | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | dd3ebe1fc0353d3e6d72f07c276710dc. |
| jsonUrlData2 | fd7d0a1b7b126b27937f |
| keywords | OMRON OCB, G2R-1A 5VDC, G2R-1A-5DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2R-1A 5VDC |
| qtyInStock | 374 |
| SKU | G2R-1A-5DC |
| snippet | OMRON OCB G2R-1A 5VDC | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 2.96 |
| tierPrice2 | 2.68 |
| tierPrice3 | 2.2 |
| tierPrice4 | 2.06 |
| tierPrice5 | 1.92 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 5V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature, |
| Mounting | PCB |
| Coil resistance | 47? |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 30m? |
| Terminal pitch | 3.5mm |
| Coil current | 106mA |
| Enclosure description | standard seal |
| Leads | for PCB |
| Related items | PODST-1 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1A-5DC | 1 | 374 | 1 | 1 @ $2.96, 5 @ $2.68, 25 @ $2.20, 100 @ $2.06, 500 @ $1.92 |
