Akg

Air Aftercooler Max Hp 1000 4800 Cfm | 4UJF3 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Akg . CC3500-3

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameAkg
DimensionUnitinch
GraingerSku4UJF3
UPCNone
UnitOfMeasureEA
Voltage230/460V
Weight645
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead, Fan HP10
extendedQty-2
height48.8
jsonUrlData924526ffbdad25e5923b
length, width64
moq, multiple, tierMinQty11
MPNCC3500-3
perItemShipping300.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG2138650
tierPrice110133.45
urlhttps://www.zoro.com/akg-air-aftercooler-max-hp-1000-4800-cfm-cc3500-3/i/G2138650/
Max Compressor1,000
Max Pressure (PSI), Maximum Operating Pressure250 psi
Width (In )52.76 in
Tube Material, Fin Material, ConstructionAluminum
Cooling Surface (Sq -Ft ), Baffle, NPT Inlet/Outlet Water (In ), GPM Min, Length (In ), Shell Material, End Bonnet-

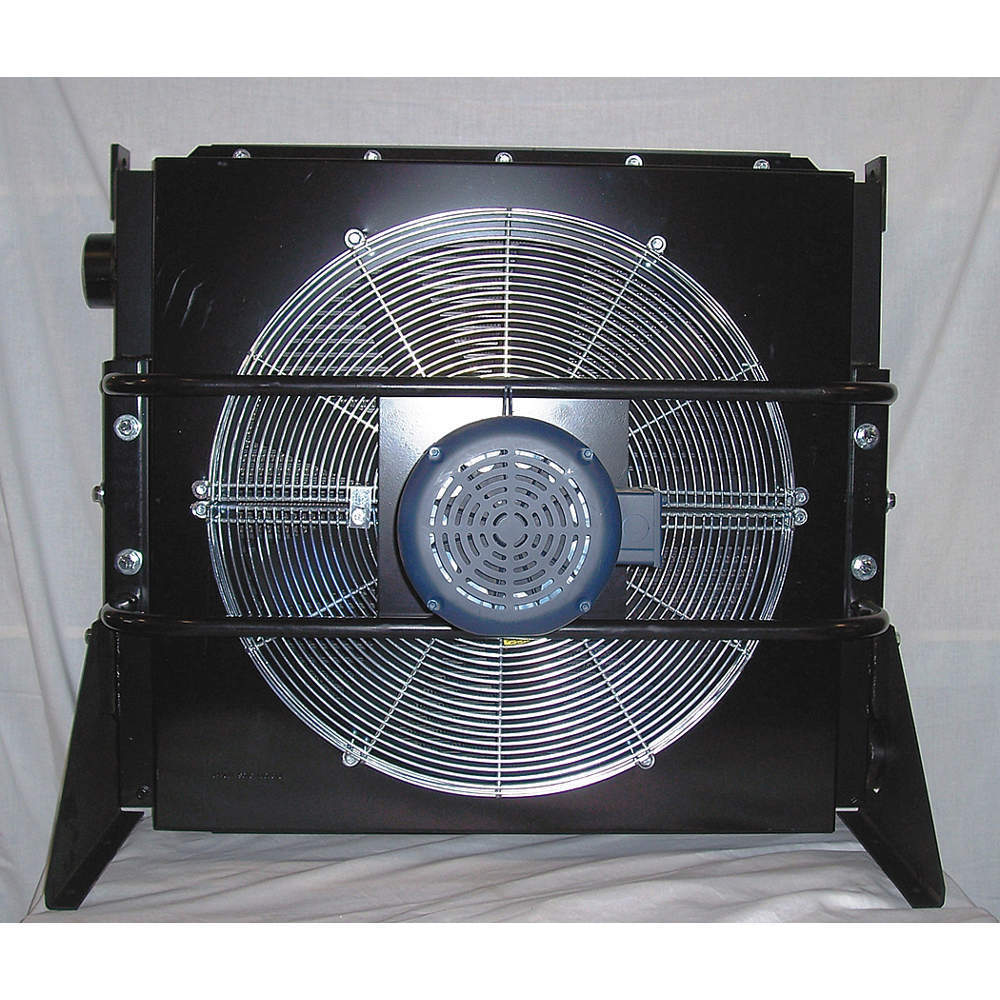

ItemAir Cooled Aftercooler
NPT Inlet/Outlet Air (In ), Air Inlet Size, Air Outlet Size4 in
Min Pressure (PSI), Minimum Operating Pressure60 psi
ApplicationRemoves Harmful Water, Oil and Contaminants from Compressed Air System
Max Amps26/13 A
Junction Box, Junction Box DesignSingle Point Electrical
Depth (In )33.82 in
Max Temp (F), Maximum Operating Temperature350 Degrees F
Max Flow CFM @ 100 PSI4,800
StandardsCSA Certified, UL Listed
IncludesMounting Legs
Height (In )57.87 in
For Use WithRotary Air Compressor
Overall Width52 3/4 in
Air Inlet Connection Type, Air Outlet Connection TypeNPT
Overall Depth33 13/16 in
Current Rating26 A
Inlet Size (Combined)4 in NPT
Cooling MethodAir
Maximum Compressor Output Power850 hp
Maximum Fan Horsepower10 hp
Frequency60 Hz
Overall Height57 13/16 in
Maximum Air Flow4,800 cfm
FeaturesReduced Air Slide Fouling
PhaseThree
Country of Origin (subject to change)United States
