Albion

Albion . 18AX04228R

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameAlbion
DimensionUnitinch
GraingerSku60FD50
UnitOfMeasureEA
Weight3.76
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height, width, Number of Mounting Holes4
jsonUrlData924526ffbdad25e5923b
length5.5
moq, multiple, tierMinQty1, Number of Wheels1
MPN18AX04228R
qtyInStock24
qtyInStockOverride-2
SKUG8093656
tierPrice177.74
urlhttps://www.zoro.com/albion-4-x-2-non-marking-polyurethane-rigid-caster-no-brake-loads-up-to-800-lb-18ax04228r/i/G8093656/

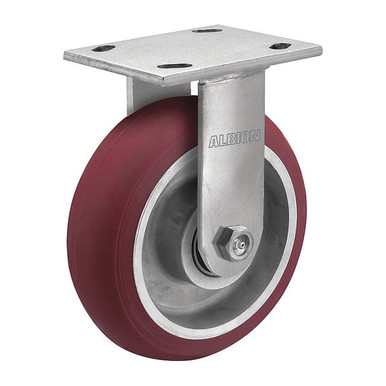

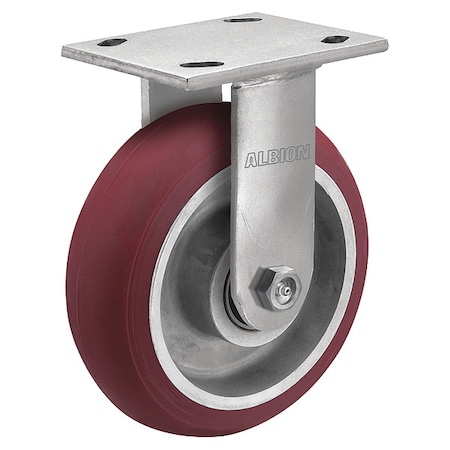

ItemErgonomic Maintenance Free Plate Caster
Caster Sub-Type, Swivel ConstructionRigid
Caster Product GroupRigid Caster
Load Rating800 lb
Wheel Dia4 in
Wheel Width2 in
Wheel/Tread MaterialPolyurethane
Wheel/Tread Hardness RatingSoft
Wheel Bearing Type, Swivel Raceway TypePrecision Ball
Mounting Height5-5/8 in
Mounting Plate Size4 in X 4-1/2 in
Caster Stem TypeTop Plate
Mounting Plate Bolt Hole PatternB
Inside Bolt Hole Spacing2-5/8 in X 3 in
Outside Bolt Hole Spacing3 in X 3-5/8 in
Mounting Bolt Dia3/8 in
Caster Brake TypeNo Brake Included
Swivel Lock TypeNo Lock Included
Non-MarkingYes
Frame FinishZinc
Caster Frame MaterialSteel
Wheel Core MaterialAluminum
Core ColorGrey
ApplicationPicking Carts, Light Towing Carts, Jit Carts, Agv & Tow Line Applications
FeaturesErgonomic, Heat Resistant Wheel, Antimicrobial, Maintenance Free, Harsh Environment Wheel
StandardsROHS Standards
ESD Conductive, Includes Spanner Bushing, Includes Thread Guards, NSF ListedNo
Series18 Series
Frame ColorGray
Mounting Plate Thickness1/4 in
Wheel/Tread Hardness85A
For Axle Dia1/2 in
Operating Temperature Range-40?F to 180?F
Wheel/Tread ColorRed
Swivel RadiusNone- Rigid Caster
Swivel Bearing Seal TypeSealed
Wheel TypeTread on Core
Tread ShapeDonut
Caster Mounting TypePlate
Wheel Core TypeSolid
Load Rating Range300 to 999 lb
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG809365612411 @ $77.74
simsupply.comCU-36304644353012211 @ $107.03
simsupply.comZO-G809365611411 @ $133.56
Grainger60FD50111 @ $91.16
