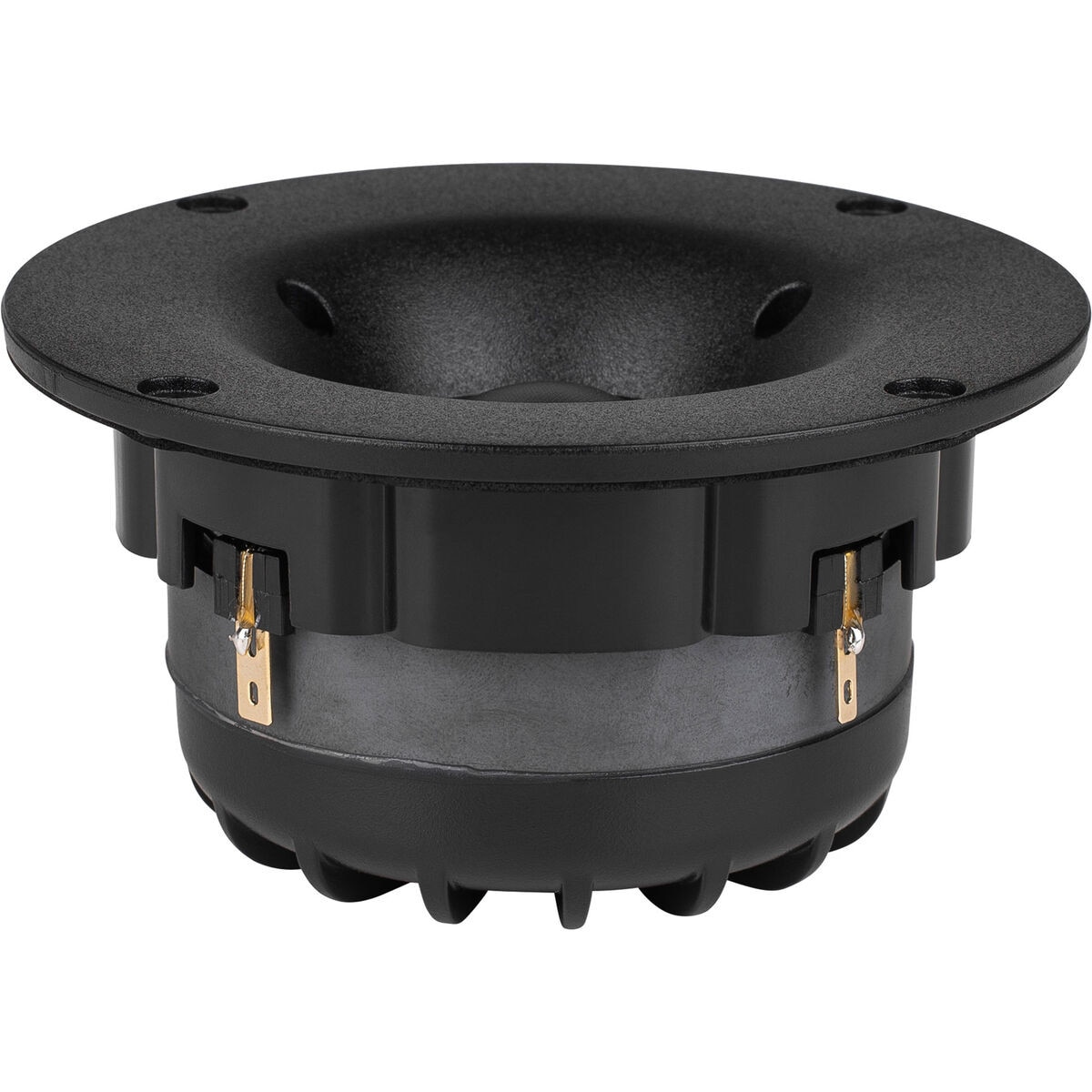

Wavecor TW030WA11 30mm Semi Horn Loaded Textile Dome Tweeter with Rear Chamber 4 Ohm
Wavecor TW030WA11 30mm Semi Horn Loaded Textile Dome Tweeter with Rear Chamber 4 Ohm. Part Number: 298-1120 by Wavecor.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Wavecor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Wavecor TW030WA11 30mm Semi Horn Loaded Textile Dome Tweeter with Rear Chamber 4 Ohm |
| UPC | 848864054612 |
| Weight | 1.55 |
| WeightUnit | lbs |
| depth, length | 2.24 |
| diameter, height, width | 4.53 |
| height_Attrib, width_Attrib | Overall Outside Diameter |
| length_Attrib | Depth |
| moq, multiple | 1 |
| MPN, Model | TW030WA11 |
| qtyInStock | Back-Ordered |
| SKU, Part Number | 298-1120 |
| snippet | Wavecor TW030WA11 30mm Semi Horn Loaded Textile Dome Tweeter with Rear Chamber 4 Ohm. Part Number: 298-1120 by Wavecor. |
| Unit of Measure | Each |
| Cone / Dome Diameter | 1.125" |
| Cutout Diameter | 4.13 |
| Tweeter Type | Soft Dome |
| Power Handling (RMS) | 45 Watts |
| Impedance | 4? |
| Frequency Response | 1,500 to 25,000Hz |
| Sensitivity | 93.5dB 2.83V/1m |
| Resonant Frequency (Fs) | 410Hz |
| DC Resistance (Re) | 3.5? |
| Voice Coil Inductance (Le) | 23mH |
| Mechanical Q (Qms) | 1.9 |
| Electromagnetic Q (Qes) | 1.34 |
| Total Q (Qts) | 0.79 |
| Overall Outside Diameter | 4.53" |
| Depth | 2.24" |
