Order YA26L345 by Burndy 50219K Compression Connector, 1-Hole Short 45 deg, (Pack of 10 pcs) - US Mega Store

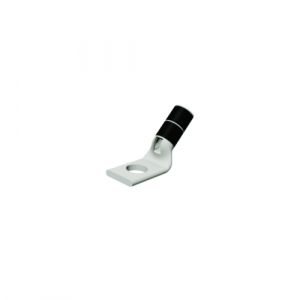

Burndy, YA26L345, 50219K Compression Connector, 2/0 CU 1-Hole Short 45 deg Copper Compression lug, 1 Hole with Inspection Window, 2/0 AWG, 5/16" Stud, Short Barrel, Tin Plated,Black,13 index.

Burndy . YA26L345

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA26L345
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YA26L345 by Burndy 50219K Compression Connector, 1-Hole Short 45 deg, (Pack of 10 pcs) - US Mega Store
diameter, height14.224
height_AttribDimension - Outside Diameter inch
length49.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA26L345
qtyInStock-2
qtySourceFieldMap
tierPrice123.94
width21.081999999999997
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index13
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction15/16 in
Dimension - B Length inch0.94 in
Dimension - Bolt Hole Size inch0.33 in
Dimension - Bolt Size fraction (Inch), Dimension - Stud Size inch5/16
Dimension - D inch0.70 in
Dimension - Hole Size mm8 mm
Dimension - L Length Overall mm49 mm
Dimension - Length Overall inch1.91 in
Dimension - N inch0.34 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch1 in
Dimension - Z inch0.36 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range125 (61) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range2/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - Industry Standards MetUL467
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA26L3451-211 @ $23.94
Crescent Electric Supply CoYA26L34511
