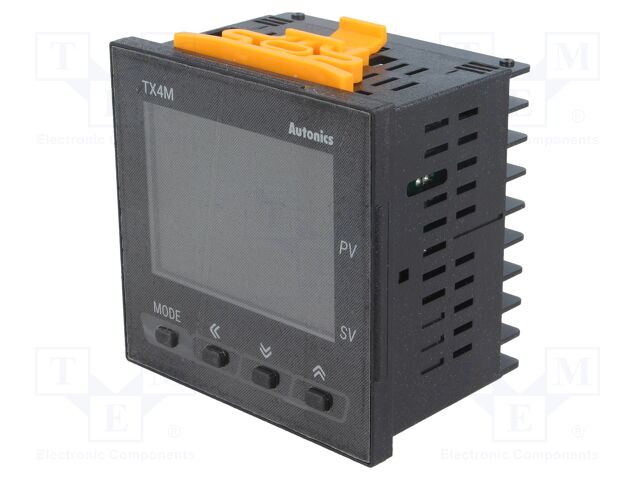

AUTONICS TX4M-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alarm
AUTONICS TX4M-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alar
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | AUTONICS |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Regulators |
| CategoryL4 | Temperature Regulators |
| DimensionUnit | mm |
| Extra Product Name | AUTONICS TX4M-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alarm |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 68.0 |
| height | 17.3 |
| height_Attrib | Display height 1 |
| jsonUrlData | 70b67e90ddbff6a0db2e24b9ac8bb784. |
| jsonUrlData2 | 6eaf4a7569de769cf192 |
| keywords | AUTONICS, TX4M-A4R, Automation, Regulation and Control, Regulators, Temperature Regulators |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN, SKU | TX4M-A4R |
| qtyInStock | 2 |
| snippet | AUTONICS TX4M-A4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alar |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierPrice1 | 116.93 |
| tierPrice2 | 104.28 |
| tierPrice3 | 91.64 |
| Type of module | regulator |
| Kind of temperature sensor | Cu50, |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| Kind of output 2, Kind of output 3 | alarm |
| Kind of output 4 | analogue |
| Regulation for output 1 | ON-OFF, |
| Mounting | on panel |
| Output 1 electrical parameters, Output 2 electrical parameters, Output 3 electrical parameters | 250V AC / 3A |
| Output 4 electrical parameters | 4...20mA |
| Controlled parameter range | -1999...9999 |
| Operating temperature | -10...50?C |
| The programming method | foil keypad |
| Body dimensions | 72x72x51mm |
| Mounting hole diameter | 68x68mm |
| IP rating | IP50 |
| Kind of display used | LCD |
| Display height 1 | 17.3mm |
| Display 2 height | 11mm |
| Manufacturer series | TX4M |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TX4M-A4R | 1 | 2 | 1 | 1 @ $116.93, 5 @ $104.28, 10 @ $91.64 |
