Order YA26LBR by Burndy 25003905 Compression Connector, 600V - 35kV, 3/8" Stud, (Pack of 50 pcs) - US Mega Store

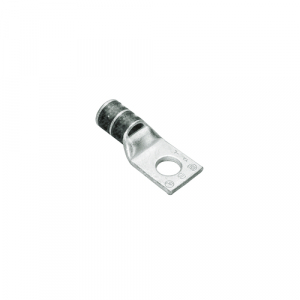

Burndy, YA26LBR, 25003905 Compression Connector, 600V - 35kV, 3/8" Stud Uninsulated Cu Tubing Compression Terminal, 1 Hole withInspWindow, 2/0 AWG Code 125 Navy Stranded Cu Conductor, 600V - 35kV, 3/8" Stud, Standard Barrel, Bare.

Burndy . YA26LBR

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA26LBR
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YA26LBR by Burndy 25003905 Compression Connector, 600V - 35kV, 3/8" Stud, (Pack of 50 pcs) - US Mega Store
diameter, height14.224
height_AttribDimension - Outside Diameter inch
length56.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA26LBR
qtyInStock-2
qtySourceFieldMap
tierPrice111.36
width21.081999999999997
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index13
Feature - Barrel StyleChamfered, Skived
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Bright
Dimension - B Length fraction15/16 in
Dimension - B Length inch0.94 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction (Inch)3/8
Dimension - D inch, Dimension - Pad Width inch0.83 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm56 mm
Dimension - Length Overall inch2.19 in
Dimension - N inch0.41 in
Dimension - Outside Diameter inch0.56 in
Dimension - Strip Length inch1 in
Dimension - Z inch0.42 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper Str Navy Size125 (61) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range2/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA26LBR1-211 @ $11.36
