Order YA31LTC14FX by Burndy Cu Tubing Compression Terminal, 1 Hole, (Pack of 25 pcs) - US Mega Store

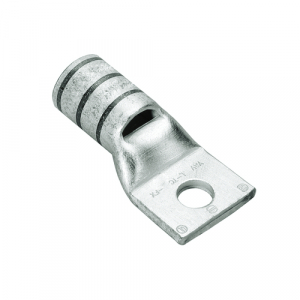

Burndy, YA31LTC14FX, Cu Tubing Compression Terminal, 1 Hole w/ Inspection Window, 250 Kcmil Flex Class I, 1/4" Stud, Standard Barrel.

Burndy . YA31LTC14FX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA31LTC14FX
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA31LTC14FX by Burndy Cu Tubing Compression Terminal, 1 Hole, (Pack of 25 pcs) - US Mega Store
diameter, height, length0.88
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA31LTC14FX
qtyInStock-2
qtySourceFieldMap
snippetBurndy, YA31LTC14FX, Cu Tubing Compression Terminal, 1 Hole w/ Inspection Window, 250 Kcmil Flex Class I, 1/4" Stud, Standard Barrel.
tierPrice122.61
width1.29
width_AttribDimension - Pad Width inch
Color CodeWhite
Connector TypeTerminal
Die Index17;298
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction1-1/16 in
Dimension - B Length inch1.06 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.27 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch1/4
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm59 mm
Dimension - Length Overall inch2.31 in
Dimension - N inch0.31 in
Dimension - Outside Diameter inch0.88 in
Dimension - Pad Width inch1.29 in
Dimension - Strip Length inch1-1/8
Dimension - Z inch0.33 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size Range, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size Range4/0 AWG
Conductor - Copper Flex I Size, Conductor - Copper Flex K Size, Conductor - Copper Flex M Size, Conductor - Copper Str Size Range250 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA31LTC14FX1-211 @ $22.61
