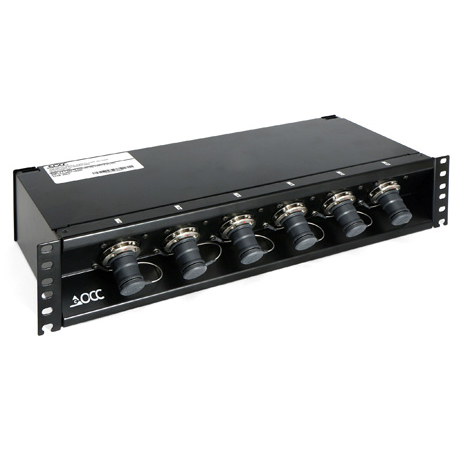

OCC's new 8x8 and 6x6 modular enclosures are highly configurable and designed to terminate SMPTE 311 and other commonly used connections on both the front and back panel. This enclosure also features a unique reversible front panel which can angle outward when space is at a premium inside the enclosure, or angle inward to buy precious space in front of the panel-a necessary feature when the rack has a door above it that must close. OCC offers a 6x2 version of their modular enclosure designed to terminate OCC?s 3-IN-1 Stadium Cables. The 6x2 2RU enclosure, with six ports on the front panel and two port on the rear panel, can provide connectivity between camera wells and the control center. Cable gland sizes are available in A: 6.35-9.65MM B: 9.65-12.7MM, and C:12.7-16MM. Also available for any OCC snap-in adapter plate accomodating SC/LC/ST/FC connectivity. Highlighted Features 8x8 version: 8 ports on the front and 8 ports on the back side 6x6 version: 6 ports on the front and 6 ports on the back side Reversible front panel available for inward or outward angle option Constructed of 16-gauge steel with a black powder-coat finish Discrete connectivity is available in SC, ST, LC, and FC type connectors Front panel available preloaded with LEMO, Canare, or Neutrik connectivity Front and rear panel also compatible with other common broadcast connectivity methods Connectivity Ports and Cable Glands: up to 8 available as well as various cable gland sizes available All connectors are fully isolated All rear cable glands are fully isolated Offers full fiber management inside the enclosure Fusion Splice option available: up to two splice trays available; fi ber hoop(s) for fiber management included with splice tray(s) Includes power/adapter plate bracket or power bracket with splice tray Power connector options: available blunt ended or with AMP/Tyco plugs or receptacles Measures 19"W, 3.5"H (2RU), 9.26"D
