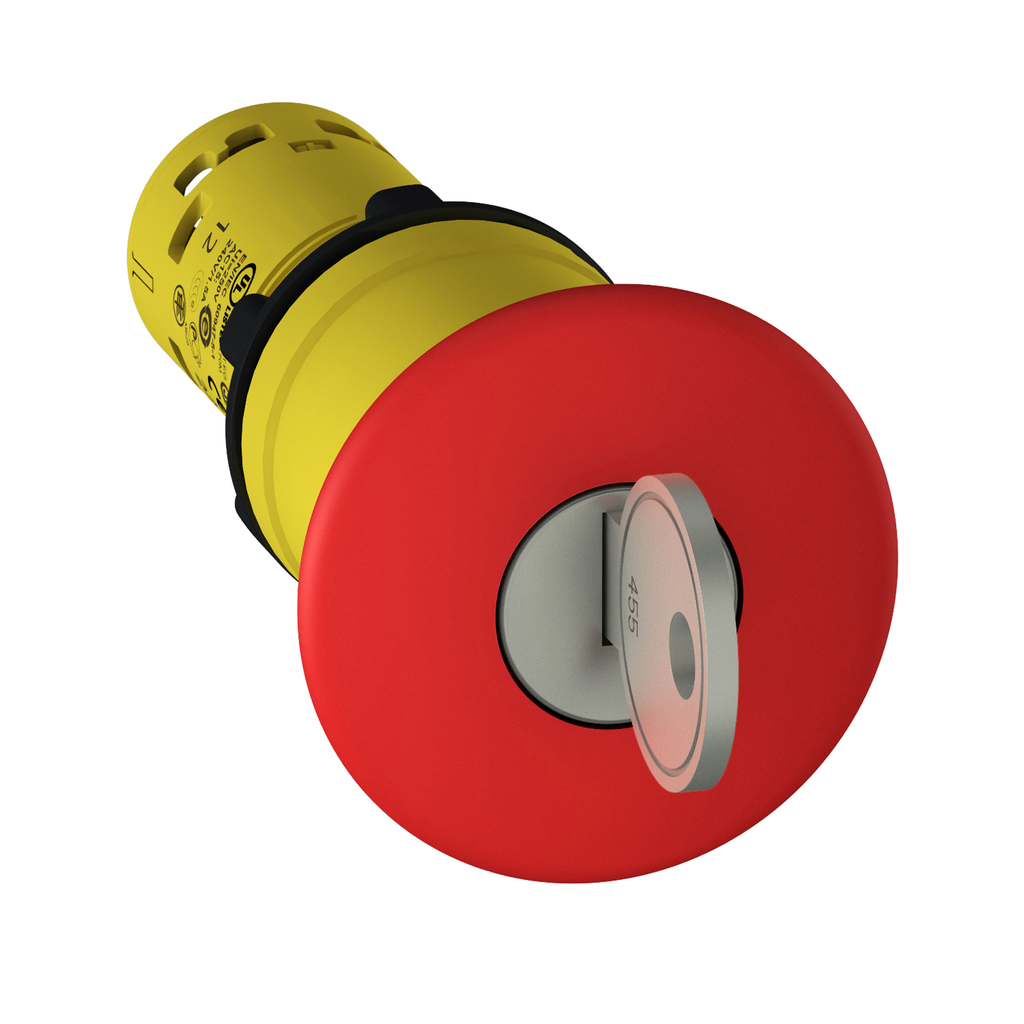

Harmony XB7, Monolithic emergency stop, plastic, red mushroom ?40, ?22, latching key release, 2 NC | Mayer Electric

SQUARE D . SQDXB7NS9444

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB7, Monolithic emergency stop, plastic, red mushroom ?40, ?22, latching key release, 2 NC | Mayer Electric
UPC3606480465642
Weight0.035
WeightUnitkg
Weight_AttribNet Weight
height, width40.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-Harmony-XB7-Monolithic-emergency-stop-plastic-red-mushroom-Ø40-Ø22-latching-key-release-2-NC-3606480465642
length72.0
length_AttribCad Overall Depth
moq, multiple1
MPN, SKUSQDXB7NS9444
qtyInStock0
width_AttribCad Overall Width
Resetkey release
Range Of ProductHarmony XB7
Mounting Diameter22 mm
Type Of Operatormechanical latching
Product Or Component Typeemergency stop push-button
Shape Of Signaling Unit Headround
Device Presentationmonolithic product
Contacts Type And Composition2 NC
Sale Per Indivisible Quantity10
Operator Profilered mushroom ? 40 mm, unmarked
Device Short NameXB7
Type Of Keylockkey 455
Warranty18 months
Contacts Usagestandard
Terminals Description Iso N?1(13-14)NC || (21-22)NC
Short-Circuit Protection4 A cartridge fuse gG EN/IEC 60947-5-1
Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Positive Openingwith EN/IEC 60947-5-1 appendix K
Fixing Modefixing nut beneath head 2-2.4 N.m
Net Weight0.035 kg
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1
Cad Overall Height, Cad Overall Width40 mm
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1 || 1.5 A 120 V, AC-15, C300 EN/IEC 60947-5-1
Contact Operationsnap action
Mechanical Durability100000 cycles
Tightening Torque0.8-1.2 N.m EN 60947-1
Cad Overall Depth72 mm
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Device Mountingfixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1805012EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1805012EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsCCC || GOST
Ambient Air Temperature For Operation-25-70 ?C
StandardsIEC 60364-5-53 || EN/IEC 60204-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/ISO 13850 || EN/IEC 60947-1
Shock Resistance15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Ambient Air Temperature For Storage-40-70 ?C
Nema Degree Of ProtectionNEMA 12 UL 50 || NEMA 3 UL 50
Electrical Shock Protection Classclass II IEC 60536
Protective TreatmentTH
