Speed Control Valve, Elbow, Pipe Size 1/8 In., Tube Size 8mm, Connection BSPT x Tube, Body Size 1/8 In., Body Material Electroless Nickel-Plated Brass and PBT, Flow Out, Adjustment Screw, Pressure Range 14.5 to 145 psi, Temp. Range 23 Degrees to 140 Degrees F, Standards - Features Item: Speed Control Valve Style: Elbow Temp. Range: 23 Degrees to 140 Degrees F Body Material: Electroless Nickel-Plated Brass and PBT Body Size: 1/8" Connection: BSPT x Tube Pipe Size: 1/8" Pressure Range: 14.5 to 145 psi Tube Size: 8mm Standards: - Adjustment: Screw Flow: Out

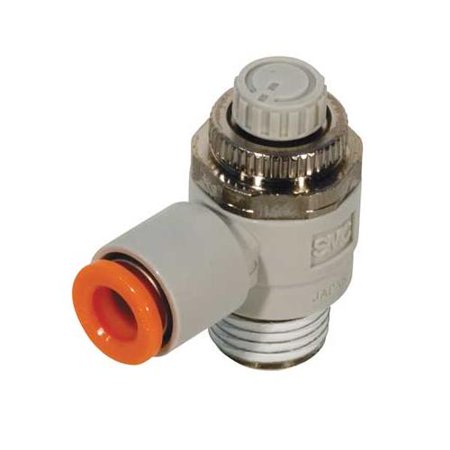

The SMC AS2201F-01-08S is an air flow control valve with a push-to-connect fitting. It features a polybutylene terephthalate (PBT) body and internal nickel-plated brass parts for corrosion resistance. The elbow-style valve has a 1/8" BSPT male inlet and an 8 mm tube OD outlet. It includes a sealant and is designed for pneumatic cylinder speed control. The valve's temperature range is 23 to 140 degrees F (-5 to 60 degrees C).
Speed Control Valve, Elbow, Pipe Size 1/8 In., Tube Size 8mm, Connection BSPT x Tube, Body Size 1/8 In., Body Material Electroless Nickel-Plated Brass and PBT, Flow Out, Adjustment Screw, Pressure Range 14.5 to 145 psi, Temp. Range 23 Degrees to 140 Degrees F, Standards - Features Item: Speed Control Valve Style: Elbow Temp. Range: 23 Degrees to 140 Degrees F Body Material: Electroless Nickel-Plated Brass and PBT Body Size: 1/8" Connection: BSPT x Tube Pipe Size: 1/8" Pressure R
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SMC |
|---|
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Walmart | 41201571 | 1 | 1 | 1 @ $15.78 |
