Potter-Brumfield . R10-E6Z2-V700
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Potter-Brumfield |
|---|---|
| CategoryId, CategoryIdL4 | 18030 |
| CategoryIdL1 | 23 |
| CategoryIdL2 | 17009 |
| CategoryIdL3 | 4524 |
| CategoryL1 | Electrical Supplies |
| CategoryL2 | Industrial Control & Automation |
| CategoryL3 | Electrical Relays |
| CategoryL4 | Power Relays |
| DimensionUnit | inch |
| UPC | None |
| WeightUnit | lbs |
| height | 1.189 |
| height_Attrib | Body Height - Relay |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 0.949 |
| length_Attrib | Body Depth - Relay |
| moq, multiple, tierMinQty1 | 1 |
| MPN | R10-E6Z2-V700 |
| qtyInStock, qtyInStockOverride | 0 |
| qtySource | qtyInStockOverride |
| SKU | G105866935 |
| tierPrice1 | 93.78 |
| url | https://www.zoro.com/potter-brumfield-powersignal-relay-2-form-c-24vdc-coil-900mw-coil-2a-contact-dc-input-panel-mount-r10-e6z2-v700/i/G105866935/ |
| width | 0.736 |
| width_Attrib | Body Width - Relay |
| Body Width - Relay | 0.736 in |
| Body Depth - Relay | 0.949 in |
| Body Height - Relay | 1.189 in |

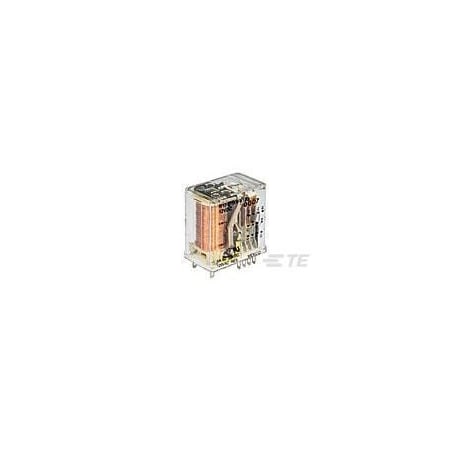

| Item - Relay | R10 Series Panel Plug-In Relay |
| Coil Volts | 24V DC |
| Contact Form - Relay | 2 Form C (CO) |
| Power Consumption - Relay | 900 mW |
| Contact Material | Ag |
| Features | Bifurcated/Twin Contacts |
| Number of Poles | 2 |
| Contact Rating, Contact Limiting Short-Time Current, Contact Limiting Continuous Current, Contact Limiting Breaking Current, Contact Limiting Making Current | 2A |
| Terminal Type | Plug-In, Solder |
| Operating Temp Range | 70 to 85?C |
| Coil Resistance | 700 ? |
| Protection Category | RTI |
| Switching Current | 1mA @ 12V |
| Mounting Type | Side Mounting Plate, Socket |
| Coil Type | Monostable, DC |
| Dielectric Voltage | 1000 Vrms Adjacent Contacts; 1000 Vrms Coil and Contact; 500 Vrms Open Contacts |
| Contact Voltage Rating | 120V AC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G105866935 | 1 | 1 | 1 @ $93.78 |
