SMA6F14AY STMicroelectronics | Circuit Protection | DigiKey

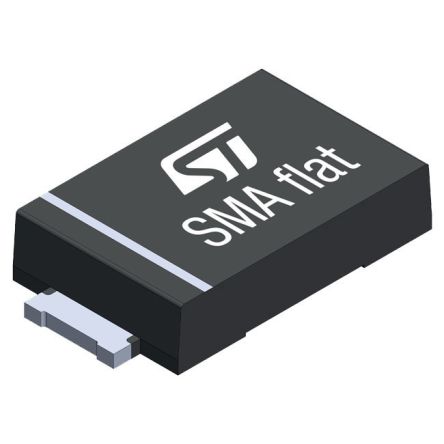

23.1V Clamp 26A Ipp Tvs Diode Surface Mount SMAflat
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | STMicroelectronics |
|---|---|
| Extra Product Name | SMA6F14AY STMicroelectronics | Circuit Protection | DigiKey |
| atoms, moq, multiple, tierMinQty1, Unidirectional Channels | 1 |
| extraShipping | 0 |
| MPN | SMA6F14AY |
| qtyInStock | 6706 |
| SKU | 9866863 |
| snippet | 23.1V Clamp 26A Ipp Tvs Diode Surface Mount SMAflat |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 1,000 |
| tierMinQty6 | 2,000 |
| tierPrice1 | 0.45000 |
| tierPrice2 | 0.38700 |
| tierPrice3 | 0.28920 |
| tierPrice4 | 0.22724 |
| tierPrice5 | 0.17559 |
| tierPrice6 | 0.16433 |
| Category | Circuit Protection |
| Series | Automotive, AEC-Q101, SMA6F |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Zener |
| Voltage - Reverse Standoff (Typ) | 14V |
| Voltage - Breakdown (Min) | 15.7V |
| Voltage - Clamping (Max) @ Ipp | 23.1V |
| Current - Peak Pulse (10/1000?s) | 26A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -55?C ~ 175?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | SMAflat |
| Base Product Number | SMA6F14 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 9866863 | 1 | 6706 | 1 | 1 @ $0.45, 10 @ $0.39, 100 @ $0.29, 500 @ $0.23, 1000 @ $0.18, 2000 @ $0.16 |
| Newark | 02AH6957 | 10000 | 10000 | 1 @ $0.44 | |
| 192-4336 | 25 | 25 | 25 @ $0.30, 125 @ $0.28, 250 @ $0.27, 625 @ $0.26, 1250 @ $0.24 | ||
| Digi-Key | 9866935 | 2000 | 6706 | 2000 | 1 @ $0.45, 10 @ $0.39, 100 @ $0.29, 500 @ $0.23, 1000 @ $0.18, 2000 @ $0.16 |
| RS Delivers | 192-3883 | 1 | 1 | 1 @ $0.12 | |
| Digi-Key | 9867004 | 1 | 6706 | 1 | 1 @ $0.45, 10 @ $0.39, 100 @ $0.29, 500 @ $0.23, 1000 @ $0.18, 2000 @ $0.16, 10000 @ $0.16 |
| st.com | SMA6F14AY | 1 | 1 | ||
 Newark | 47AK6903 | 5 | 5 | 1 @ $0.72, 10 @ $0.55, 25 @ $0.46, 50 @ $0.39, 100 @ $0.32, 250 @ $0.28, 500 @ $0.23, 1000 @ $0.19 |
