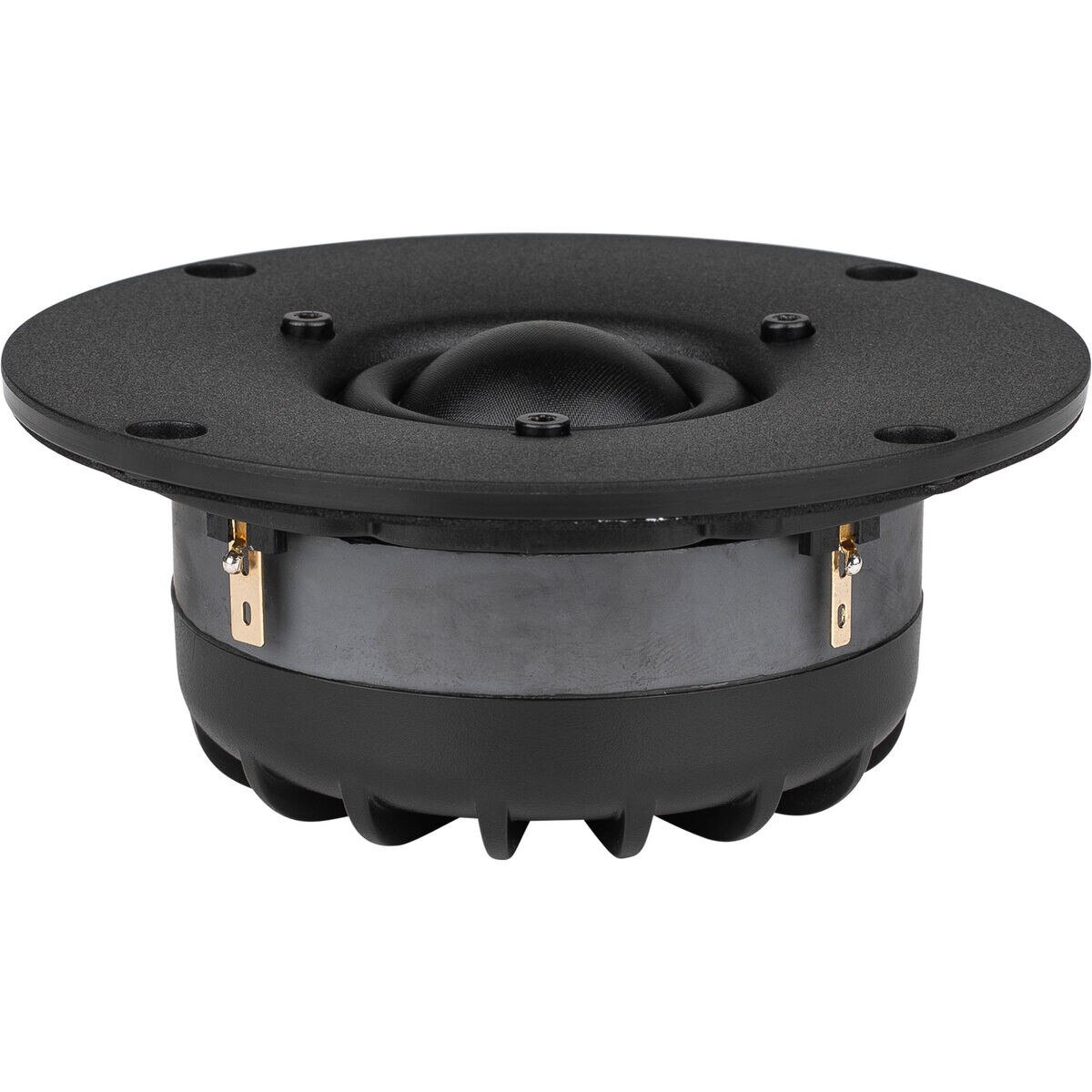

Wavecor TW030WA05 30mm Textile Dome Tweeter with Rear Chamber 4 Ohm
Wavecor TW030WA05 30mm Textile Dome Tweeter with Rear Chamber 4 Ohm. Part Number: 298-1108 by Wavecor.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Wavecor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Wavecor TW030WA05 30mm Textile Dome Tweeter with Rear Chamber 4 Ohm |
| UPC | 848864054551 |
| Weight, Mechanical Q (Qms) | 1.5 |
| WeightUnit | lbs |
| depth, length | 1.69 |
| diameter, height, width | 4.53 |
| height_Attrib, width_Attrib | Overall Outside Diameter |
| length_Attrib | Depth |
| moq, multiple | 1 |
| MPN, Model | TW030WA05 |
| qtyInStock | 0 |
| SKU, Part Number | 298-1108 |
| snippet | Wavecor TW030WA05 30mm Textile Dome Tweeter with Rear Chamber 4 Ohm. Part Number: 298-1108 by Wavecor. |
| Unit of Measure | Each |
| Cone / Dome Diameter | 1.125" |
| Cutout Diameter | 4.13 |
| Tweeter Type | Soft Dome |
| Power Handling (RMS) | 50 Watts |
| Impedance | 4? |
| Frequency Response | 1,500 to 25,000Hz |
| Sensitivity | 91.5dB 2.83V/1m |
| Resonant Frequency (Fs) | 450Hz |
| DC Resistance (Re) | 3.4? |
| Voice Coil Inductance (Le) | 20mH |
| Electromagnetic Q (Qes) | 0.96 |
| Total Q (Qts) | 0.59 |
| Overall Outside Diameter | 4.53" |
| Depth | 1.69" |
